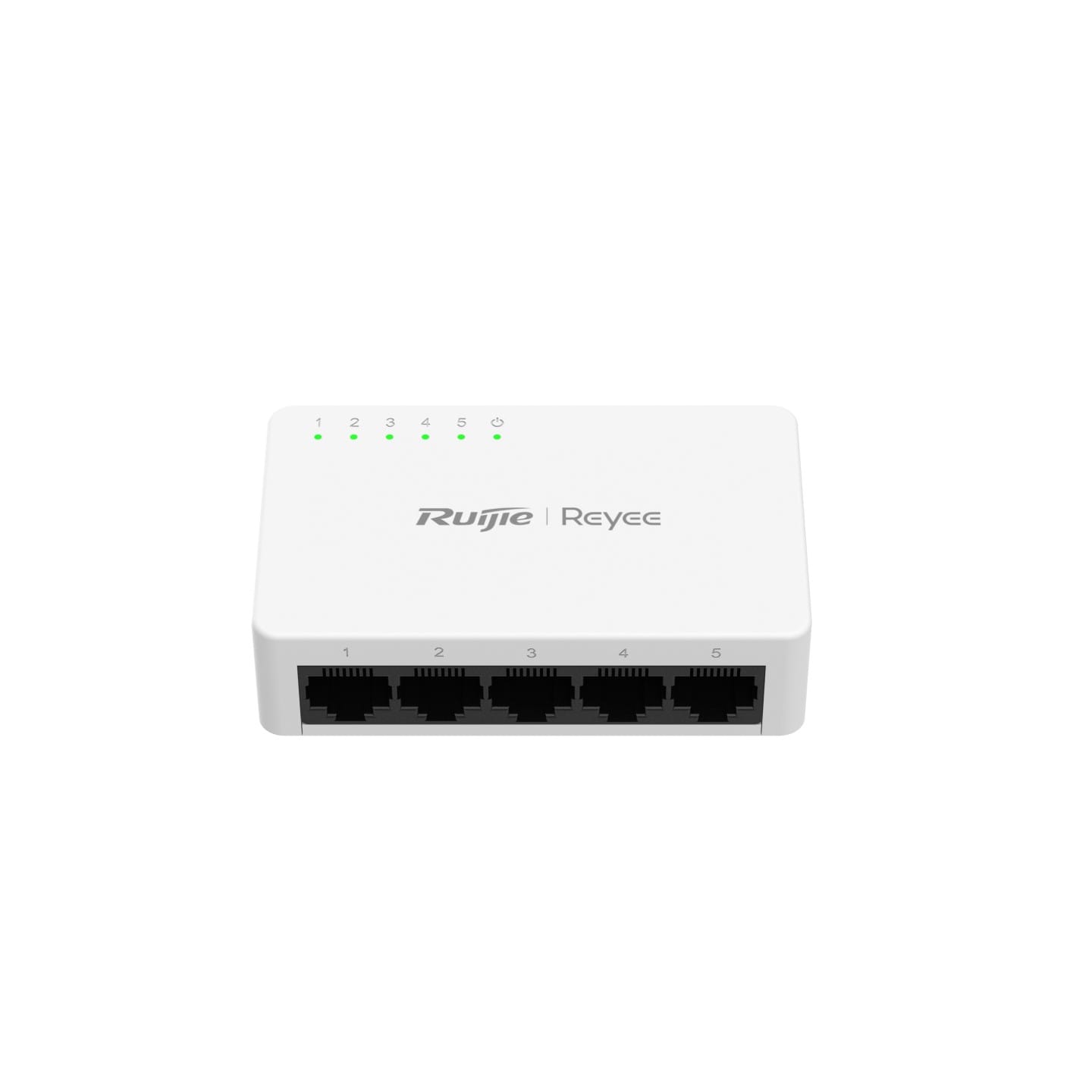

Ruijie Reyee RG-ES05G-L

Features

• Hardware & Interface Specifications
• • Ports: 5 × 10/100/1000BASE-T RJ45 ports (Gigabit Ethernet)
• • PoE Support: Non-PoE
• • Supported Technologies: Auto-Negotiation and Auto-MDI/MDIX
• • Surge Protection: ±4 kV for service ports
• Performance & System Architecture
• • Switching Capacity: 10 Gbps
• • Forwarding Rate: 7.44 Mpps
• • MAC Address Table: Up to 2,000 entries (2K)
• • Flash Memory: 1 MB
• • Layer Type: Layer 2 unmanaged
• Power & Environment
• • Power Supply: External 5V DC / 1A power adapter
• • Max Power Consumption: 2.1 W
• • Cooling: Fanless design for totally silent operation
• • Operating Temperature: 0 °C to 45 °C (32 °F to 113 °F)
• • Operating Humidity: 10% to 90% RH (non-condensing)
• Physical Characteristics
• • Casing Material: Matte plastic housing (White)
• • Dimensions (W × D × H): 85 mm × 52 mm × 23.5 mm (3.35 in. × 2.05 in. × 0.93 in.)
• • Weight: 57 g (0.13 lbs) without packaging
• • Mounting: Desktop or small shelf installation
• Cloud Visibility & Management
• • Ruijie Cloud Integration: It is entirely plug-and-play and cannot be configured. However, it features Ruijie Cloud topology visibility, allowing you to see it on your network map remotely via the Ruijie Cloud App/Web if there is at least one managed Ruijie switch acting as a gateway/master on the same network.
• • Warranty: 3-year warranty
