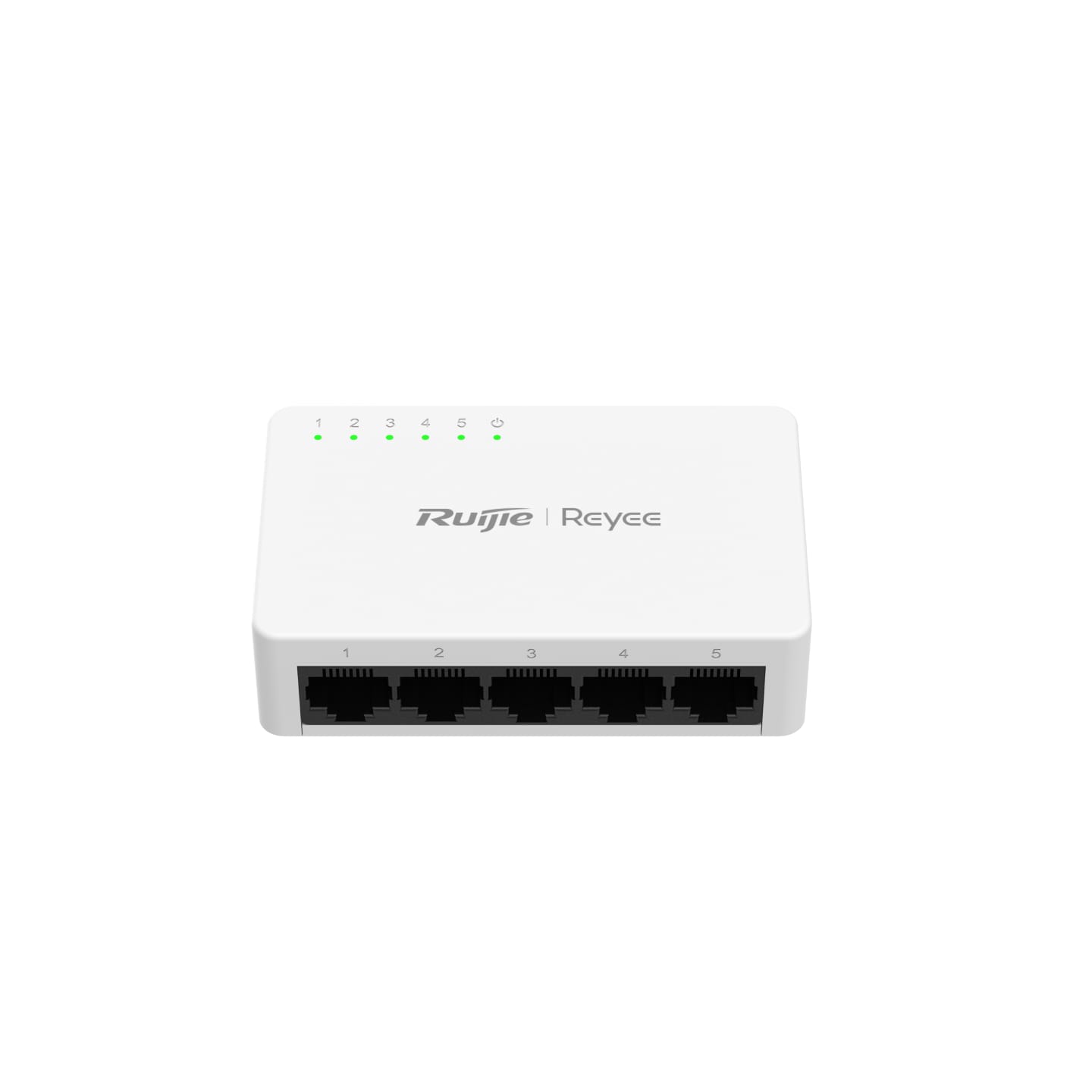

Ruijie Reyee RG-ES05F

Features

• Hardware & Interface Specifications
• • Ports: 5 × 10/100BASE-T RJ45 ports (Fast Ethernet)
• • PoE Support: Non-PoE
• • Supported Technologies: Auto-Negotiation and Auto-MDI/MDIX
• • Surge Protection: ±4 kV for service ports (common mode)
• Performance & System Architecture
• • Switching Capacity: 1 Gbps
• • Forwarding Rate: 0.74 Mpps
• • MAC Address Table: Up to 1K or 2K entries
• • Layer Type: Layer 2 unmanaged
• Power & Environment
• • Power Supply: External 5V DC / 1A power adapter (Included)
• • Max Power Consumption: 1.4 W
• • Cooling: Fanless design (natural cooling for silent operation)
• • Operating Temperature: 0 °C to 45 °C (32 °F to 113 °F)
• • Operating Humidity: 10% to 90% RH (non-condensing)
• Physical Characteristics
• • Casing Material: White matte plastic housing
• • Dimensions (W × D × H): 85 mm × 52 mm × 23.5 mm (3.35 in. × 2.05 in. × 0.93 in.)
• • Weight: 49.5 g (0.11 lbs) without packaging
• • Mounting: Desktop or shelf installation
• Cloud Visibility
• • Ruijie Cloud Integration: Even though it is an unmanaged, plug-and-play switch that cannot be configured, it is visible within the Ruijie Cloud network topology. Note: This requires at least one managed Ruijie switch to be deployed on the same network to discover it.
