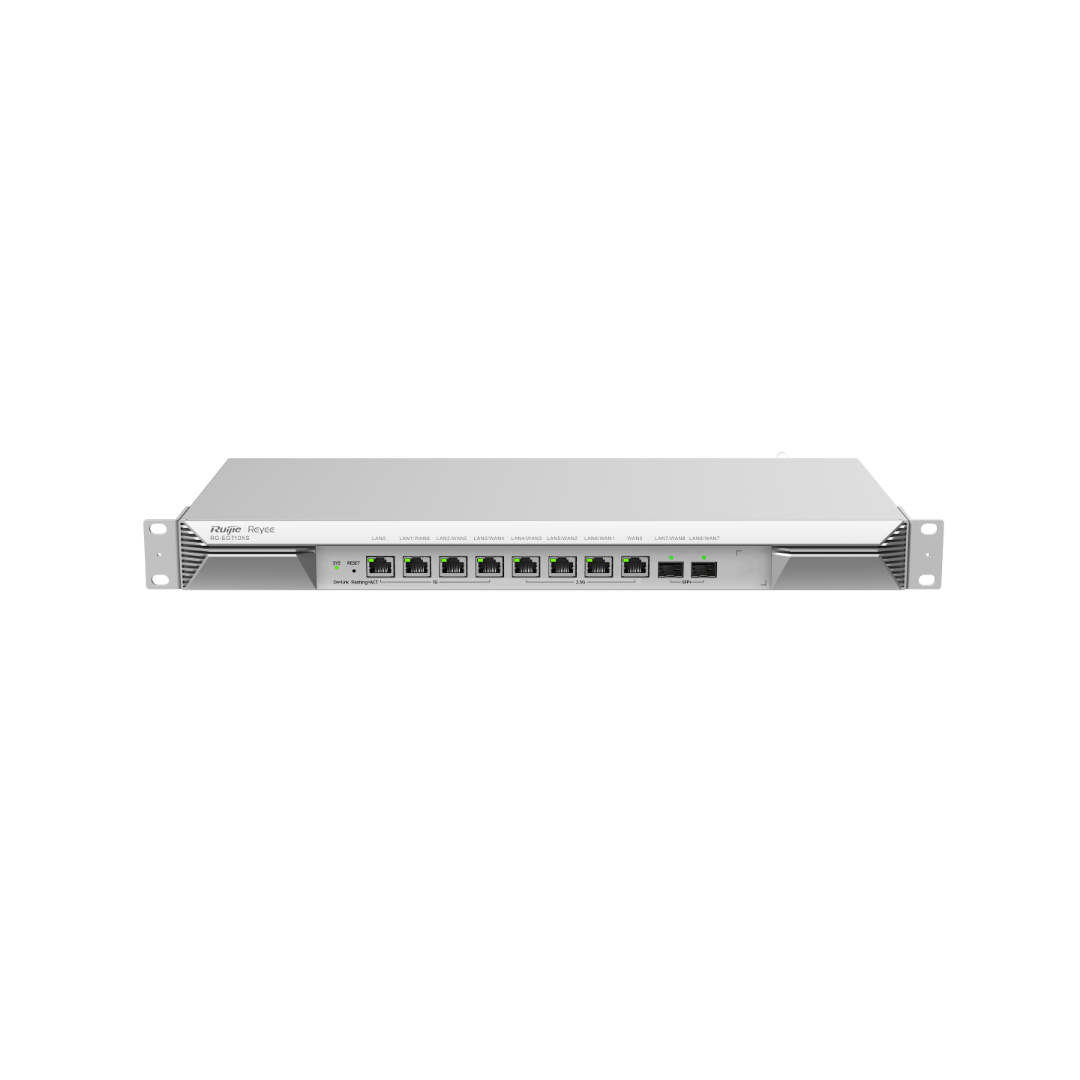

Ruijie Reyee RG-EG710XS

Features

• Hardware Specs & Port Configuration
• • CPU: Heavy-duty 1.8 GHz Quad-Core processor per core.
• • RAM: 2 GB (2048 MB) DDR memory—double the capacity of the EG400 series.
• • Flash Memory: 256 MB.
• • Total High-Speed Ports: 10 Ports total (8 × RJ45 ports + 2 × SFP+ slots).
• • Port Breakdown:
• • 4 × 10/100/1000/2500BASE-T RJ45 Multi-Gigabit ports
• • 4 × 10/100/1000BASE-T RJ45 Gigabit ports
• • 2 × 1G/10G Base-X SFP+ Optical Ports (For lightning-fast 10 Gbps core switches or backbone fiber connections).
• • Extreme Multi-WAN Flex: Configurable with 1 fixed WAN, 1 fixed LAN, and 8 LAN/WAN switchable ports. It can handle up to 9 concurrent WAN ports for heavy-duty ISP multi-homing, load balancing, and carrier failover.
• • PoE Capability: None (Data-only routing gateway).
• Performance & System Capacities
• • Recommended NAT Throughput: 3.0 Gbps (3000 Mbps) in Normal Mode, stepping up to 4.0 Gbps (4000 Mbps) in Turbo Mode.
• • Concurrent Clients: Confidently hosts up to 700 active concurrent users without bottlenecking.
• • Enterprise VPN Engine: Supports up to 300 active concurrent VPN tunnels—perfect for connecting deep retail chains or far-flung remote branch offices back to headquarters.
• Software & Management Features
• • Smart Traffic Auditing: Advanced application-based and user-based bandwidth priority management. It can dynamically throttle, block, or schedule applications (like streaming, online gaming, and torrents) to prioritize critical office tools.
• • Enterprise Security & Portals: Built-in customized captive portal landing pages supporting visual designs, voucher code assignments, QR-code authentication, and local guest network restrictions.
• • Cloud Management: Includes free lifetime remote access, auto-topology generation, configuration backups, batch firmware deployment, and live monitoring via the Ruijie Cloud Web Platform or the Reyee Mobile App.
• Physical & Power Properties
• • Form Factor: Standard 1U 19-inch Rack-mountable design with a heavy-duty industrial metal casing.
• • Cooling System: Premium fanless passive cooling structure, ensuring completely silent 24/7 heavy-load operations even when mounted into crowded server racks.
• • Dimensions (W x D x H): 440 mm × 210 mm × 43.6 mm.
• • Weight: 2.65 kg.
• • Power Supply: Direct internal fixed power module via a standard standard IEC AC power cord (100V~240V AC, 50/60Hz). Total maximum power consumption is exceptionally low at under 14W–20W.
