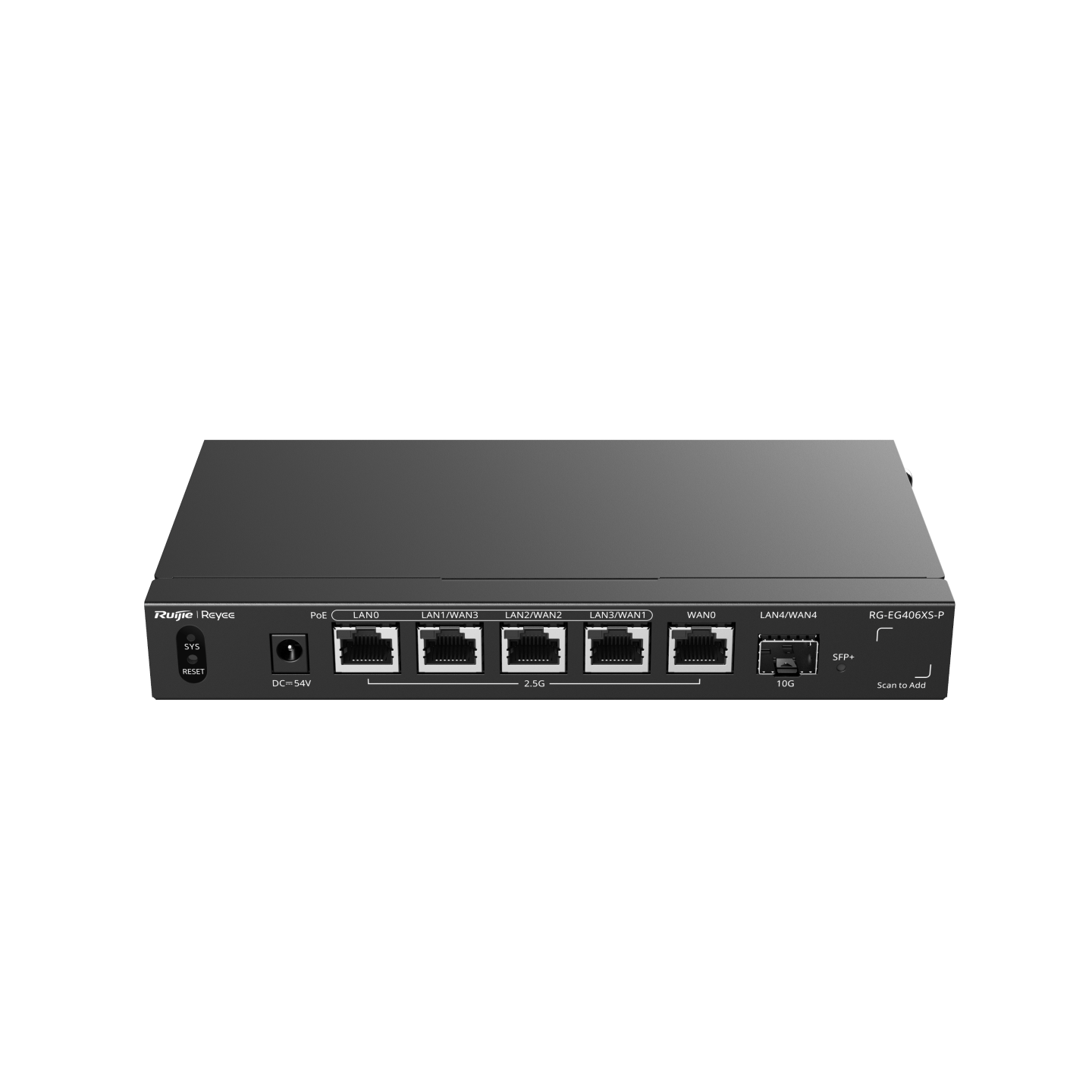

Ruijie Reyee RG-EG406XS

Features

• Hardware Specs & Port Configuration
• • CPU: Enterprise-grade Quad-Core processor running at 2.0 GHz per core (A massive jump from the 880 MHz dual-core chips on standard models).
• • RAM: 1 GB (1024 MB) DDR memory—double the capacity of the highest GH-series models.
• • Flash Memory: 256 MB.
• • Total Ports: 6 High-Speed Ports total (5 × RJ45 ports + 1 × SFP+ cage).
• • Port Breakdown:
• • 5 × 10/100/1000/2500BASE-T RJ45 Multi-Gigabit ports
• • 1 × 1G/10G Base-X SFP+ Optical Port (For ultra-high-speed fiber trunks directly to server stacks or modern ISP uplinks).
• • Port Layout Flexibility: 1 fixed WAN, 1 fixed LAN, and 4 LAN/WAN switchable ports. It supports up to 5 concurrent WAN inputs for high-tier redundancy and smart load balancing.
• • PoE Capability: None on this base model. (Note: Its twin model, the RG-EG406XS-P, provides PoE+ with a 110W power budget if needed).
• Performance & System Capacities
• • Recommended NAT Throughput: 2.5 Gbps (2500 Mbps) under regular operation, expanding up to 3.5 Gbps (3500 Mbps) in Turbo Mode.
• • Concurrent Clients: Confidently handles up to 400 active users simultaneously.
• • VLAN Support: Supports up to 128 isolated VLAN networks.
• • Device Controller Capacity: Acts as a master network hardware manager, controlling up to 750 Reyee Access Points (APs) and NBS switches in AC mode, plus 128 entry-level ES switches.
• Software & Deep Security Features
• • Layer 7 Deep Packet Inspection (DPI): High-end traffic auditing and app identification capabilities. Allows administrators to actively filter, block, or tightly restrict traffic based on applications (e.g., stopping unauthorized gaming or media streams directly).
• • Heavy VPN Processing: Hosts up to 100 concurrent VPN tunnels simultaneously. Achieves phenomenal processing speeds: IPsec up to 700 Mbps, L2TP/PPTP up to 850 Mbps, WireGuard up to 750 Mbps, and OpenVPN up to 200 Mbps.
• • Advanced Authentication: Built-in engine for local or cloud captive portal designs, enabling secure voucher codes, QR codes, SMS auth, or custom corporate splash pages.
• • Management Ecosystem: Free lifetime management, remote configurations, real-time monitoring, auto-topology layout generation, and mass updates via the Ruijie Cloud interface or Reyee Mobile App.
• Physical & Power Properties
• • Chassis: Compact black desktop structural chassis. Uses a premium fanless passive natural cooling grid for silent operations.
• • Dimensions (W x D x H): 202 mm × 108 mm × 28 mm.
• • Weight: 0.61 kg.
• • Power Requirements: External DC power brick adapter (uses roughly 9 Watts max without active internal system strains).
