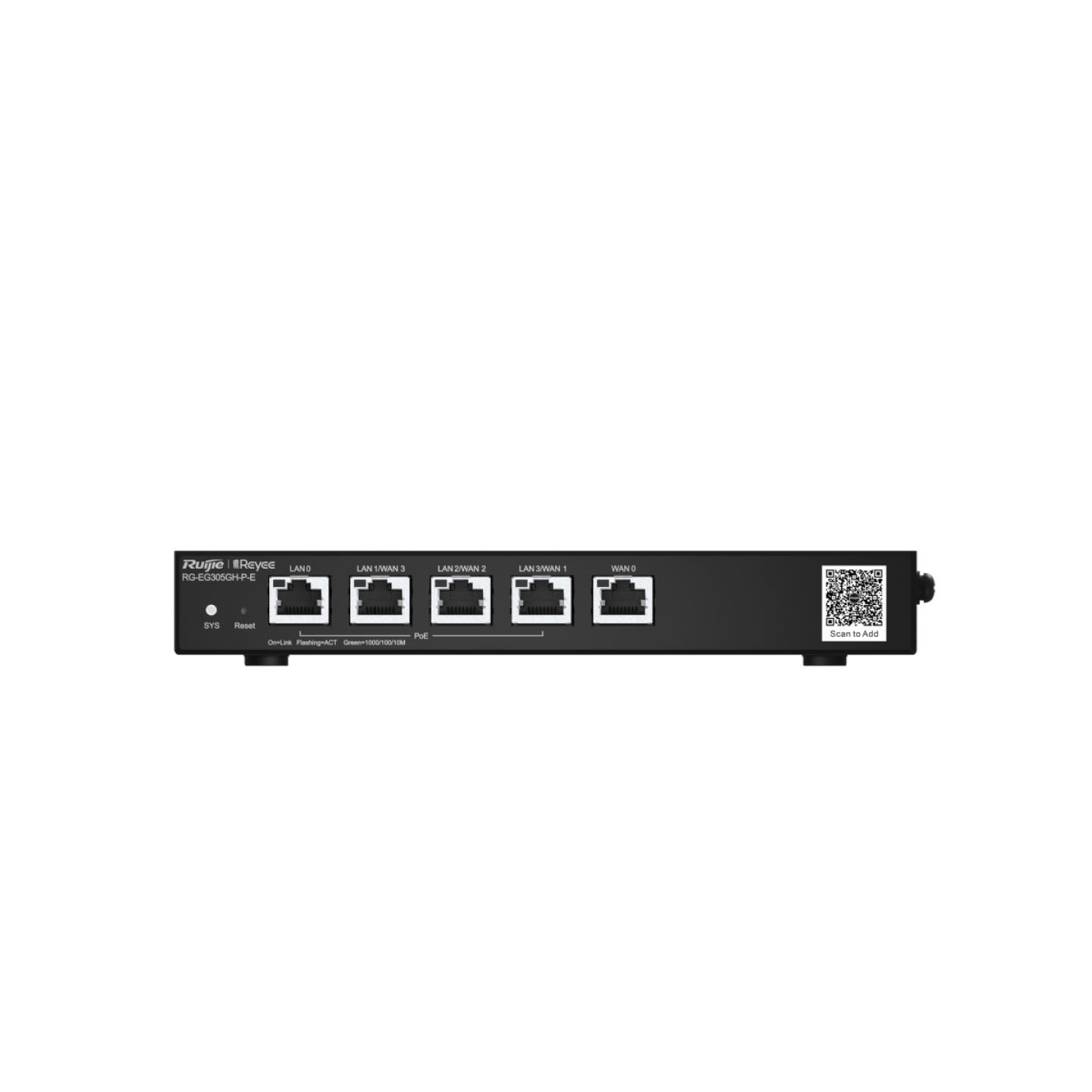

Ruijie Reyee RG-EG305GH-P-E

Features

• Hardware Specs & Port Configuration
• • CPU: Upgraded Dual-core processor, 1.35 GHz clock frequency per core
• • RAM: 512 MB DDRIII (Double the memory capacity of the standard EG200/105 series)
• • Flash Memory: 256 MB
• • Total RJ45 Ports: 5 × 10/100/1000 BASE-T Gigabit ports
• • Port Configuration:
• • 1 × Fixed WAN port
• • 1 × Fixed LAN port
• • 3 × LAN/WAN switchable ports (Allows up to 4 concurrent WAN ports for multi-ISP smart load balancing and seamless link failover)
• • PoE Out Capability: 4 × PoE/PoE+ ports (Available on LAN ports 0 to 3)
• • PoE Budget: 60 W total power budget (Up to 30 W max per port under IEEE 802.3af/at standards).
• Performance & System Capacities
• • Recommended Bandwidth: Massive routing throughput of up to 1.5 Gbps
• • Concurrent Clients: Supports up to 300 concurrent users smoothly
• • Device Controller Capacity: Can auto-discover and centrally manage up to 150 Reyee Access Points (APs) or NBS switches, plus 128 ES switches.
• Software Features
• • Advanced Flow Control: Efficient bandwidth management driven by smart application and user tracking. It maintains a dynamically updating app library allowing network admins to easily throttle or block non-work applications (e.g., P2P torrents, gaming, streaming).
• • Corporate VPN: Highly secure, high-performance VPN tunnel capacity supporting up to 64 active tunnels across IPSec, OpenVPN, L2TP, and PPTP.
• • Custom Captive Portals: Native visual setup tools for building guest Wi-Fi authentication landing pages, including voucher codes and QR authentication layouts.
• • Remote Management: Free lifetime remote setup, health diagnostics, firmware upgrades, and maintenance via the Ruijie Cloud Platform or the Reyee mobile app.
• Physical & Power
• • Chassis: Compact Desktop Steel Enclosure (Fanless design for entirely silent continuous operations)
• • Dimensions (W x D x H): 202 mm × 108 mm × 28 mm
• • Weight: 0.5 kg (Chassis only)
• • Power Input: Standard internal 100V~240V AC, 50/60Hz input (Consumes ≤ 80W with full PoE load)
