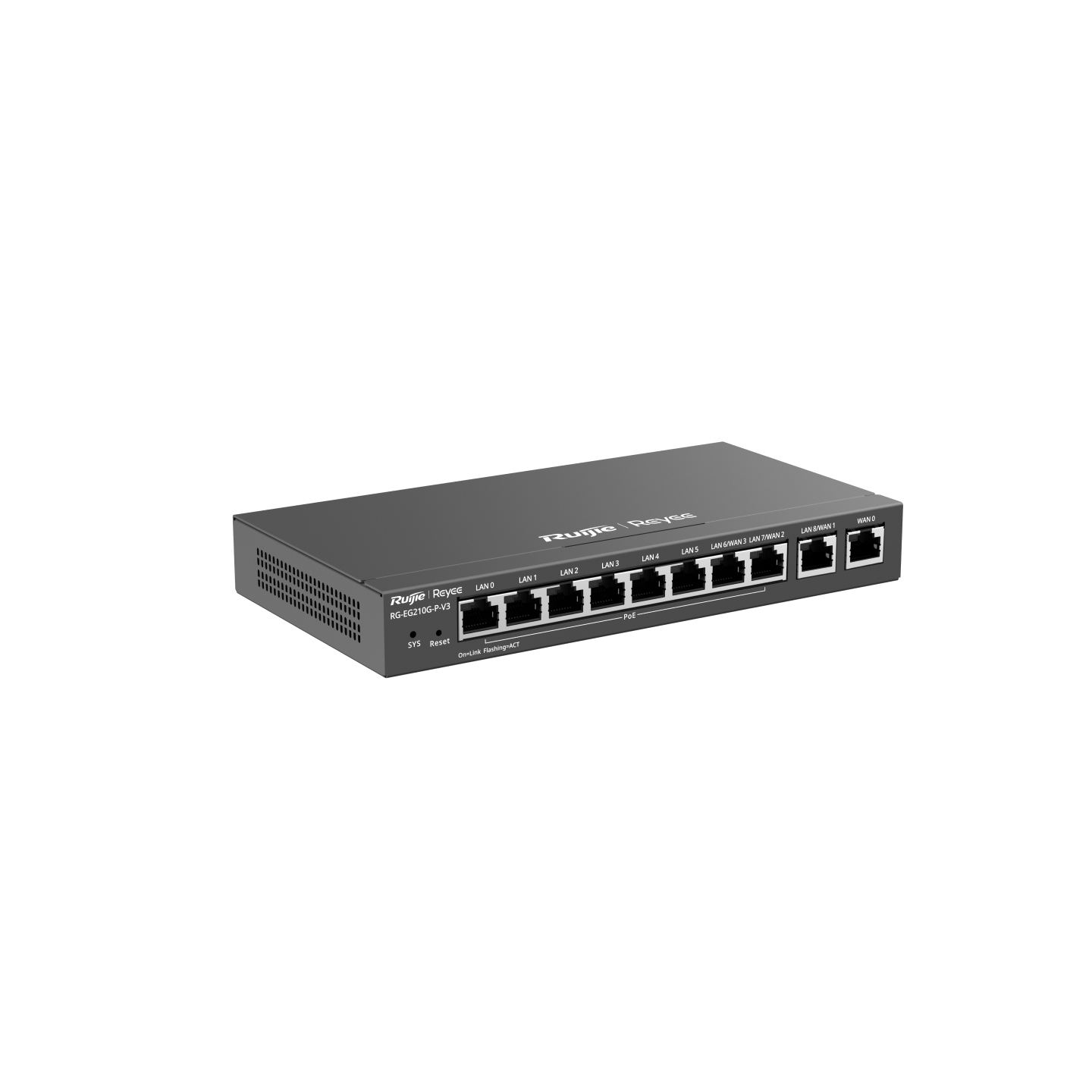

Ruijie Reyee RG-EG210G-P-V3

Features

• Hardware Specs & Port Configuration
• • Total RJ45 Ports: 10 × 10/100/1000 BASE-T Gigabit ports
• • Port Layout Flexibility:
• • 1 × Fixed WAN port
• • 6 × Fixed LAN ports
• • 3 × LAN/WAN switchable ports (Allows up to 4 concurrent WAN ports for wide-scale load balancing and multi-ISP failover)
• • PoE Capability: 8 × PoE/PoE+ ports (Available on LAN ports 0 to 7)
• • PoE Power Budget: Up to 110 W total budget (Supports up to 30 W per port under IEEE 802.3af/at standards).
• • Processor & Memory: Dual-Core CPU at 880 MHz per core with 256 MB RAM and 32 MB Flash storage.
• Performance & System Capacities
• • Throughput: 600 Mbps standard, boosting up to 1000 Mbps in Turbo Mode.
• • Concurrent Users: Handles up to 200 concurrent clients.
• • Concurrent Sessions: Up to 60,000 sessions.
• • Controller Mode Capacity: Centrally manages up to 500 Reyee devices (Access Points and NBS switches in AC mode) + 128 ES switches.
• Software Features
• • App & URL Control: Automatically updates its local library to block unwanted games, streaming services, or non-work applications.
• • Captive Portals: Easily deploy customized guest Wi-Fi landing pages with What-You-See-Is-What-You-Get (WYSIWYG) visual layout tools.
• • VPN Support: Full business compliance hosting IPSec, L2TP, PPTP, OpenVPN, and WireGuard.
• • Network Optimization: Smart flow control, multi-WAN load balancing, and secure remote internal device access.
• • Free Cloud Management: Free remote setup, monitoring, configuration backups, and firmware upgrades through the Ruijie Cloud Web Platform or the Reyee Mobile App.
• Physical Appearance & Form
• • Chassis: Compact Desktop Steel Casing. Like its smaller sibling, it features a fanless, naturally cooled design for completely silent operations.
• • Dimensions (W x D x H): 202 mm × 108 mm × 28 mm
• • Power Input: Standard internal AC power (100V~240V AC, 50/60Hz). Total power consumption is <130 W with a full PoE load.
