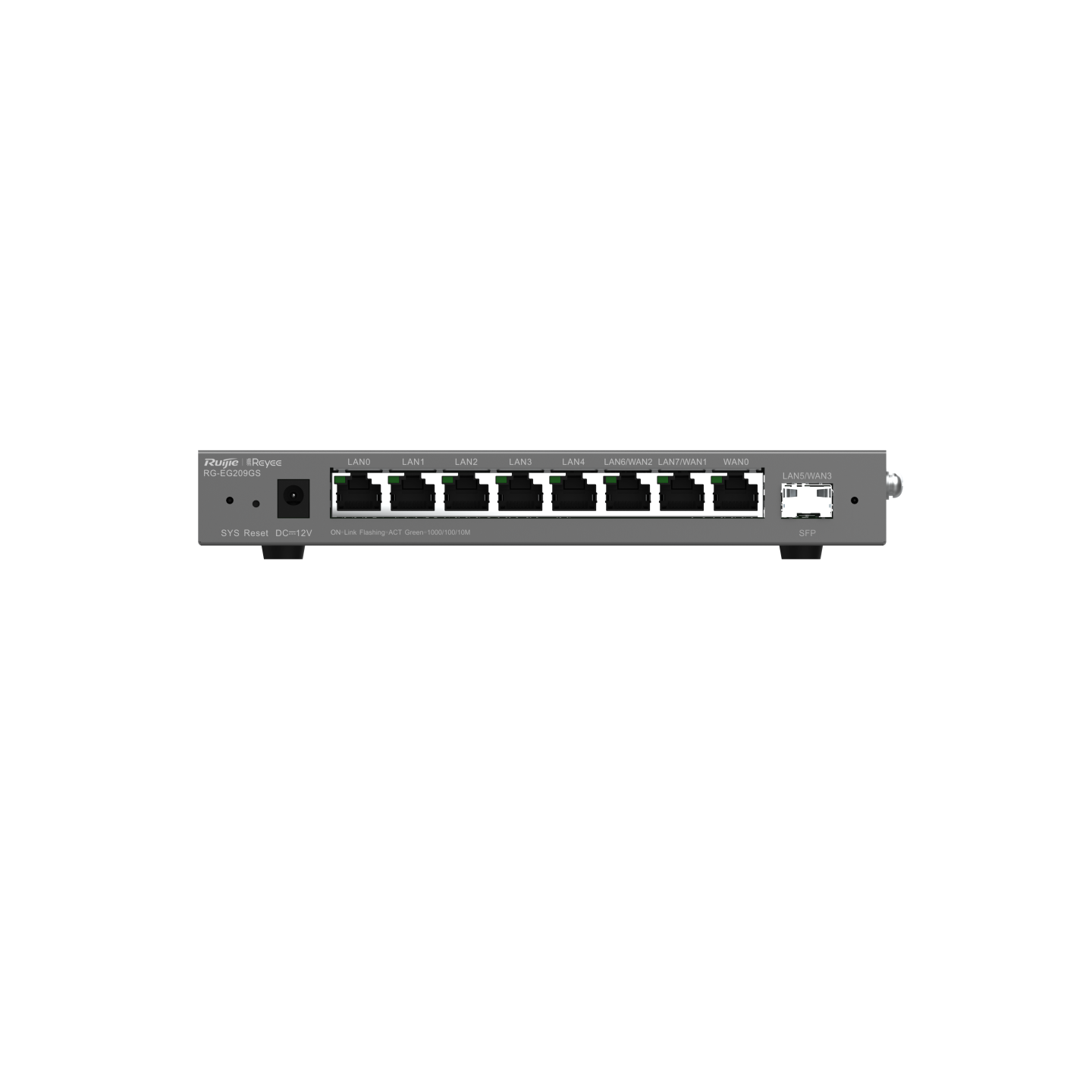

Ruijie Reyee RG-EG209GS

Features

• Hardware Specs & Port Configuration
• • Total Ports: 9 Ports total (8 × RJ45 Gigabit Ports + 1 × 1GBase-X SFP Port)
• • Port Breakdown:
• • 1 × Fixed RJ45 WAN port
• • 5 × Fixed RJ45 LAN ports
• • 2 × LAN/WAN Switchable RJ45 ports
• • 1 × LAN/WAN Switchable SFP port (For high-speed optical fiber connectivity)
• • Multi-WAN Capacity: Supports up to 4 WAN ports concurrently for smart load balancing and automated link failover.
• • CPU: Dual-Core processor, clocking at 880 MHz per core
• • RAM: 256 MB DDRIII
• • Flash Memory: 32 MB
• • PoE Out Capability: None (Strictly a data-only router).
• Performance & System Capacities
• • Recommended Bandwidth: 600 Mbps in Normal Mode (Up to 1000 Mbps in Turbo Mode)
• • Concurrent Users: Handles up to 200 concurrent clients.
• • Device Management (AC Mode): Can auto-discover and centrally manage up to 150 Reyee Access Points (APs) or NBS switches, plus 128 ES switches.
• Software Features
• • Bandwidth Management: Advanced application-based and user-based bandwidth priority rules (e.g., restricting streaming apps or gaming while prioritizing office applications).
• • VPN Support: Enterprise-grade security supporting IPSec (28 Mbps), L2TP (190 Mbps), OpenVPN (20 Mbps), PPTP, and WireGuard.
• • Guest Access: Built-in customized captive portals and customizable landing pages with voucher codes.
• • Remote Management: Free lifetime network monitoring and configurations via the Ruijie Cloud Web / Reyee Mobile App.
• Physical & Power
• • Chassis: Compact Desktop Steel Case (Fanless natural cooling, entirely silent).
• • Dimensions (W x D x H): 202 mm × 108 mm × 28 mm
• • Weight: 0.5 kg
• • Power Supply: Uses a standard external 100~240V AC power input (Power consumption is under 18W).
