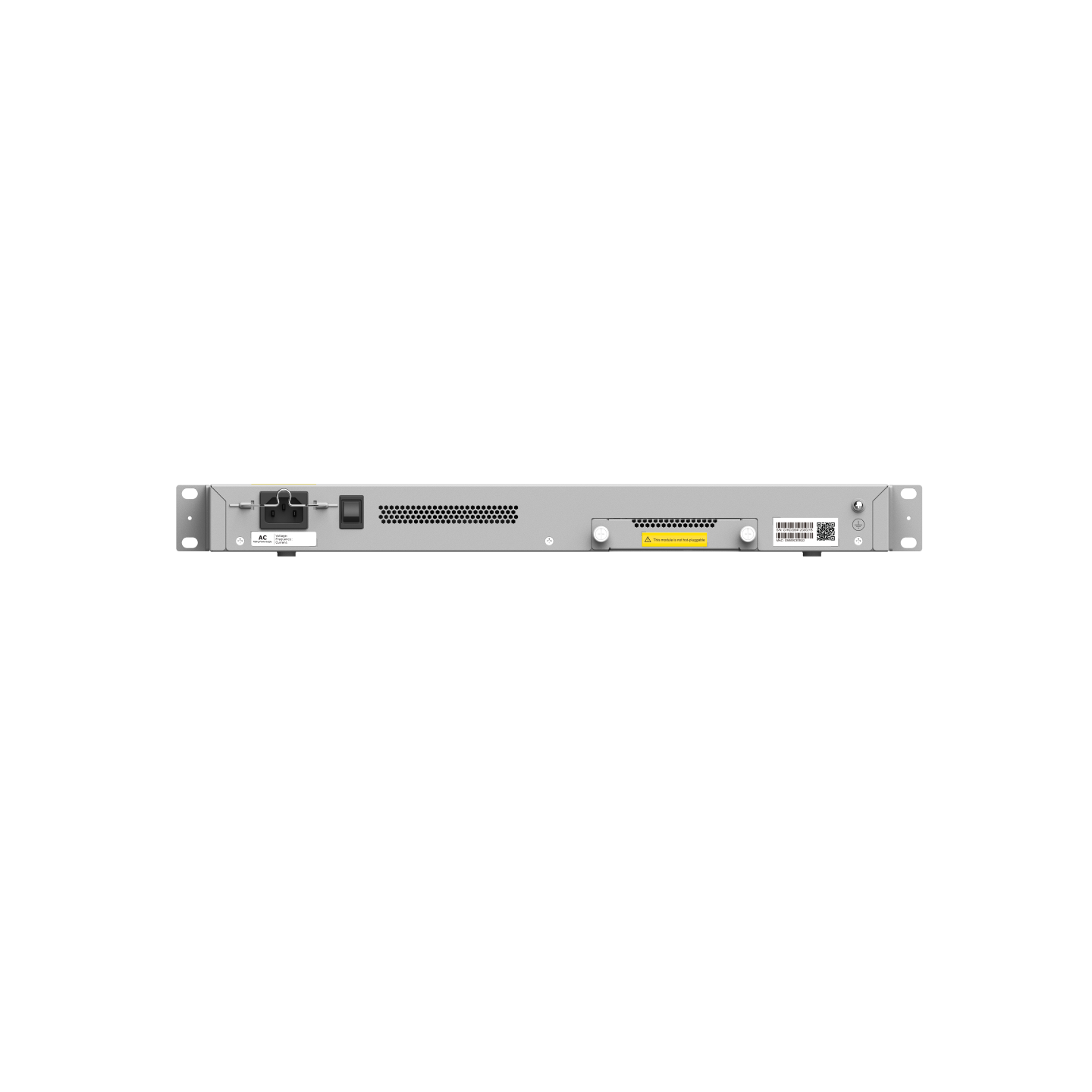

Ruijie Reyee RG-EG1510XS
Specifications
- • Form Factor
- Solid industrial metal chassis built for standard 1U rack mounting (rackmount ears/brackets are included in the packaging).
- • VPN Capacities
- Built to support secure multi-site corporate networks, managing up to 1,000 concurrent VPN tunnels simultaneously (supporting IPSec, OpenVPN, L2TP, PPTP, and WireGuard).
- • Client Capacity
- Supports up to 1,500 concurrent clients / active users without performance degradation.
- • 1G Gigabit Ports
- 4 × Copper ports (1 Fixed LAN, 3 Switchable LAN/WAN).
- • Storage Expansion
- Includes an internal 2.5-inch SATA HDD bay (supporting up to 1TB hard drives) specifically dedicated to storing local internet activity logs and system syslogs over long retention periods.
- • Network Throughput
- Delivers up to 4 Gbps of total asymmetrical routing throughput (or up to 3 Gbps when advanced Deep Packet Inspection (DPI) and Layer 7 Application Control are fully active).
- • Processor & Memory
- Equipped with a Quad-core 1.8 GHz enterprise CPU, paired with 4 GB of RAM and 128 MB of flash storage.
- • Dimensions & Weight
- 440 mm × 210 mm × 43.6 mm (17.3 in × 8.3 in × 1.7 in), weighing approximately 3.0 kg (6.6 lbs).
- • Power & Reliability
- Driven by a built-in internal power supply (100–240V AC, 50/60Hz). It features an integrated power cord retention clip to protect against accidental power disconnects inside server racks.
- • Multi-WAN Integration
- Supports up to 7 concurrent WAN links from different internet providers to achieve smart load balancing and seamless automatic failover.
- • 10G SFP+ Optical Ports
- 2 × 10 Gigabit high-speed fiber ports for ultra-fast uplinks to core switches or direct high-capacity ISP connections.
- • 2.5G Multi-Gigabit Ports
- 4 × Copper ports (1 Fixed WAN, 3 Switchable LAN/WAN) allowing multi-gigabit broadband termination.
- • Unified Hardware Controller
- Acts as a central master controller capable of managing up to 1,000 Ruijie Reyee Wireless Access Points and 128 Managed Switches from a single dashboard.
- The router features a total of 10 front-facing physical ports with flexible WAN/LAN reassignment configurations
