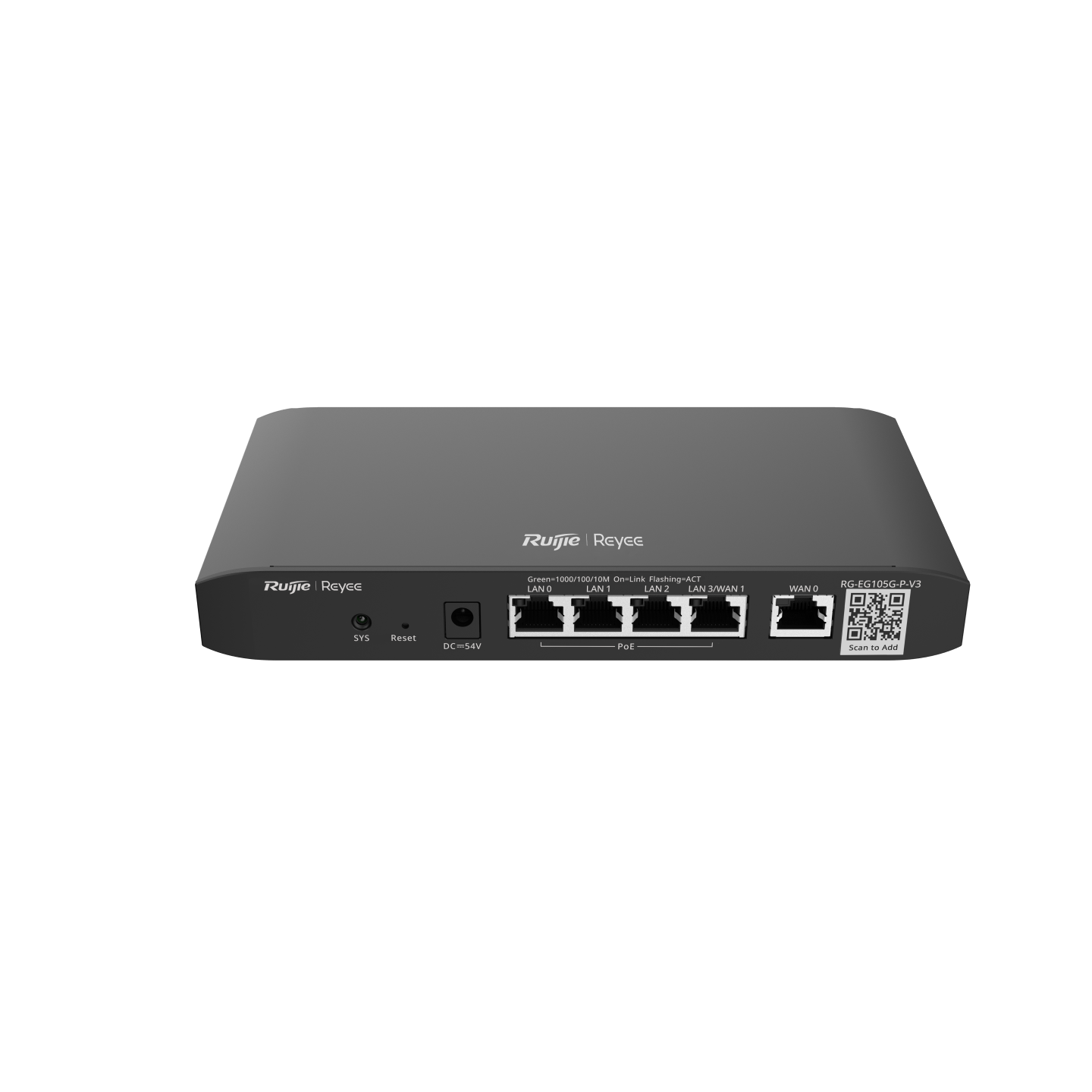

Ruijie Reyee RG-EG105G-V3
The Ruijie Reyee RG-EG105G-V3 is a compact, 5-port Gigabit cloud-managed router built for small offices, retail shops, and smart homes. It handles up to 100 users and 1 Gbps bandwidth, supports dual-WAN load balancing, and can be completely configured and managed remotely for free using the Reyee App.
Features
- Hardware Specs & Port Configuration
- • CPU: Dual-core processor, 880 MHz clock frequency per core
- • RAM: 128 MB
- • Flash Memory: 32 MB
- • Total RJ45 Ports: 5 × 10/100/1000 BASE-T Gigabit ports
- • Port Layout:
- • 1 × Fixed WAN port
- • 3 × Fixed LAN ports
- • 1 × LAN/WAN switchable port (allows up to 2 concurrent WANs for load balancing and failover)
- • PoE Capability: None (Requires an external power injector or a separate PoE switch if powering APs or IP cameras).
- Performance & System Capacities
- • Throughput: 600 Mbps in Normal Mode (Up to 1000 Mbps when Turbo Mode is activated)
- • Concurrent Users: Up to 100 concurrent clients
- • Concurrent Sessions: Maximum 20,000
- • Device Management Capacity: Manages up to 300 Reyee Access Points (APs) or NBS switches in AC mode, and up to 128 ES switches.
- Software Features
- • Management: Free lifetime remote monitoring, setup, and maintenance via the Ruijie Cloud Web / Reyee Mobile App.
- • VPN Support: Supports IPsec (28 Mbps), L2TP (130 Mbps), PPTP (190 Mbps), OpenVPN (20 Mbps), and WireGuard (80 Mbps).
- • Security & Optimization: Multi-WAN smart load balancing, captive portal authentication, behavior management (app/website blocking), smart flow control, and integrated firewall protection.
- Physical & Electrical
- • Power Consumption: < 12 W total
- • Power Supply: External DC 12V / 1A power adapter (Included)
- • Dimensions (W x D x H): 206.5 mm × 108.5 mm × 28 mm
- • Weight: 0.406 kg
- • Cooling: Fanless, completely silent natural cooling.
