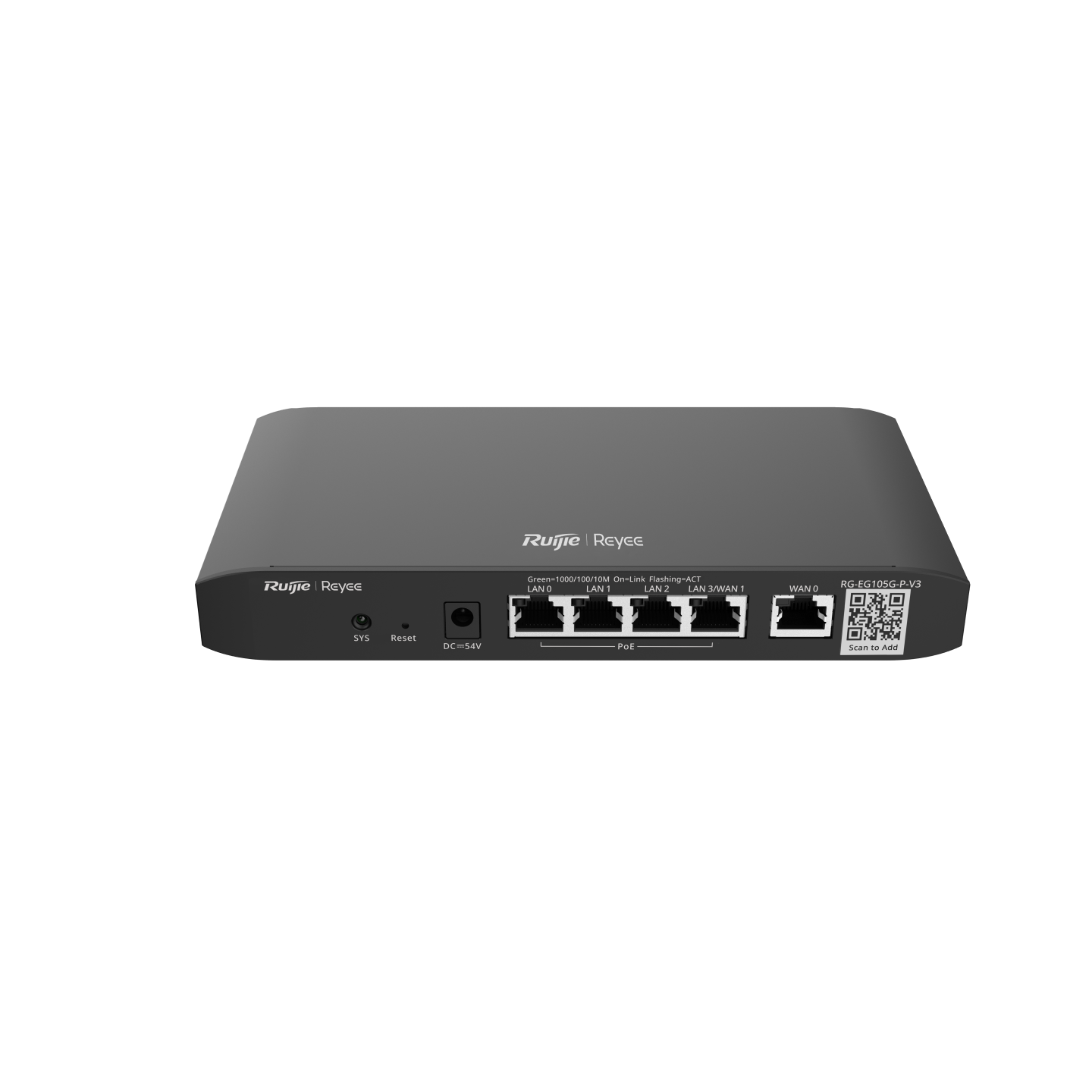

Ruijie Reyee RG-EG105G-P-V3
RG-EG105G-P-V3 Reyee Cloud Managed PoE Router
Features
- Performance & Capacity
- • Recommended Throughput: 600 Mbps (up to 1000 Mbps in Turbo Mode)
- • Recommended Concurrent Users: Up to 100 users
- • Max VLANs: 16
- • Device Management: Manages up to 32 APs/NBS switches + 128 ES switches (or up to 300 APs/NBS switches in AC mode)
- Software & Features
- • Management: Free Ruijie Cloud / Reyee mobile app (remote monitoring, configuration, and maintenance)
- • VPN Support: IPSec, L2TP, PPTP, and OpenVPN
- • Network Features: Multi-WAN load balancing and failover, captive portal authentication, smart flow control, application-based speed limits, and firewall protection.
- Physical & Environmental
- • Dimensions (W x D x H): 206.5 mm × 108.5 mm × 28 mm
- • Weight: 0.406 kg
- • Cooling / Design: Fanless, natural cooling (desktop or wall-mountable)
- • Operating Temperature: 0°C to 40°C
Specifications
- RAM: 128 MB
- 1 × Fixed WAN port
- Flash Memory: 32 MB
- • Port Breakdown:
- 3 × Fixed LAN ports
- CPU: Dual-core processor, 880 MHz per core
- PoE Budget: 54 W total (up to 30 W per port)
- PoE Out Ports: 4 × PoE/PoE+ (IEEE 802.3af/at)
- Total RJ45 Ports: 5 × 10/100/1000 BASE-T Gigabit ports
- 1 × LAN/WAN switchable port (up to 2 WAN ports total for load balancing and failover)
