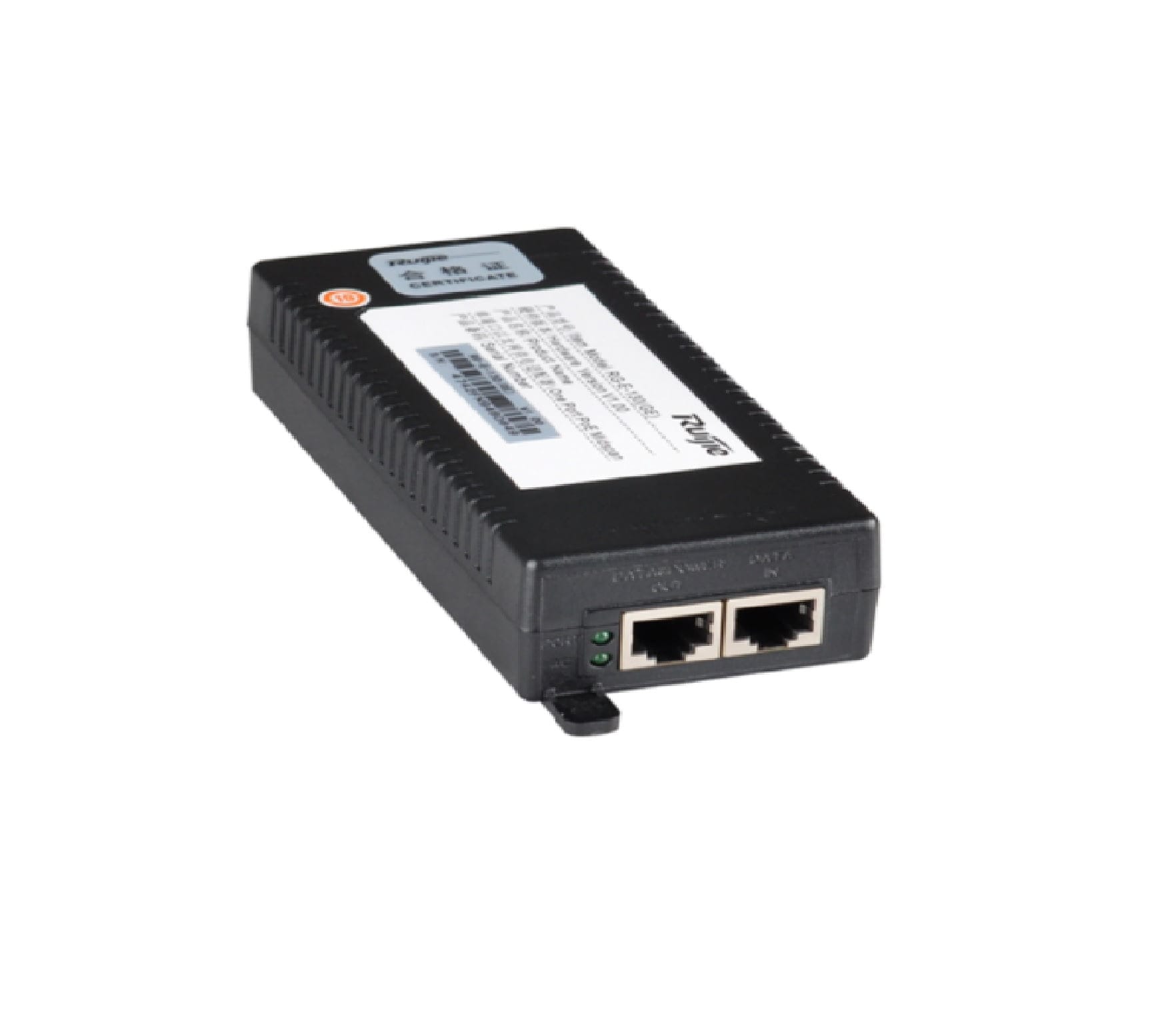

Ruijie Reyee RG-E-130(GE)

Specifications

• PoE Standard

IEEE 802.3at (PoE+) compliant, backward compatible with IEEE 802.3af (PoE)

• Product Type

1-Port Gigabit PoE+ Power Injector

• Pin Assignment

Uses alternative A (power over pairs 1/2 and 3/6) or alternative B (pairs 4/5 and 7/8) depending on deployment, pushing power via 2 pairs.

• Max Power Output

Up to 30 W maximum power allocation

• Ethernet Data Rate

10/100/1000 Mbps (Gigabit line speeds)

• Dimensions & Weight

53 mm × 32.5 mm × 140 mm; Weight: ~200 g.

• Output Line Voltage

53 V DC

• Hardware Protections

• Physical Port Layout

• Max Transmission Range

Stable data and power delivery over copper Ethernet cables up to 100 meters (328 feet).

• Environmental Operating Range

0°C to 45°C (32°F to 113°F); 5% to 90% non-condensing humidity.
