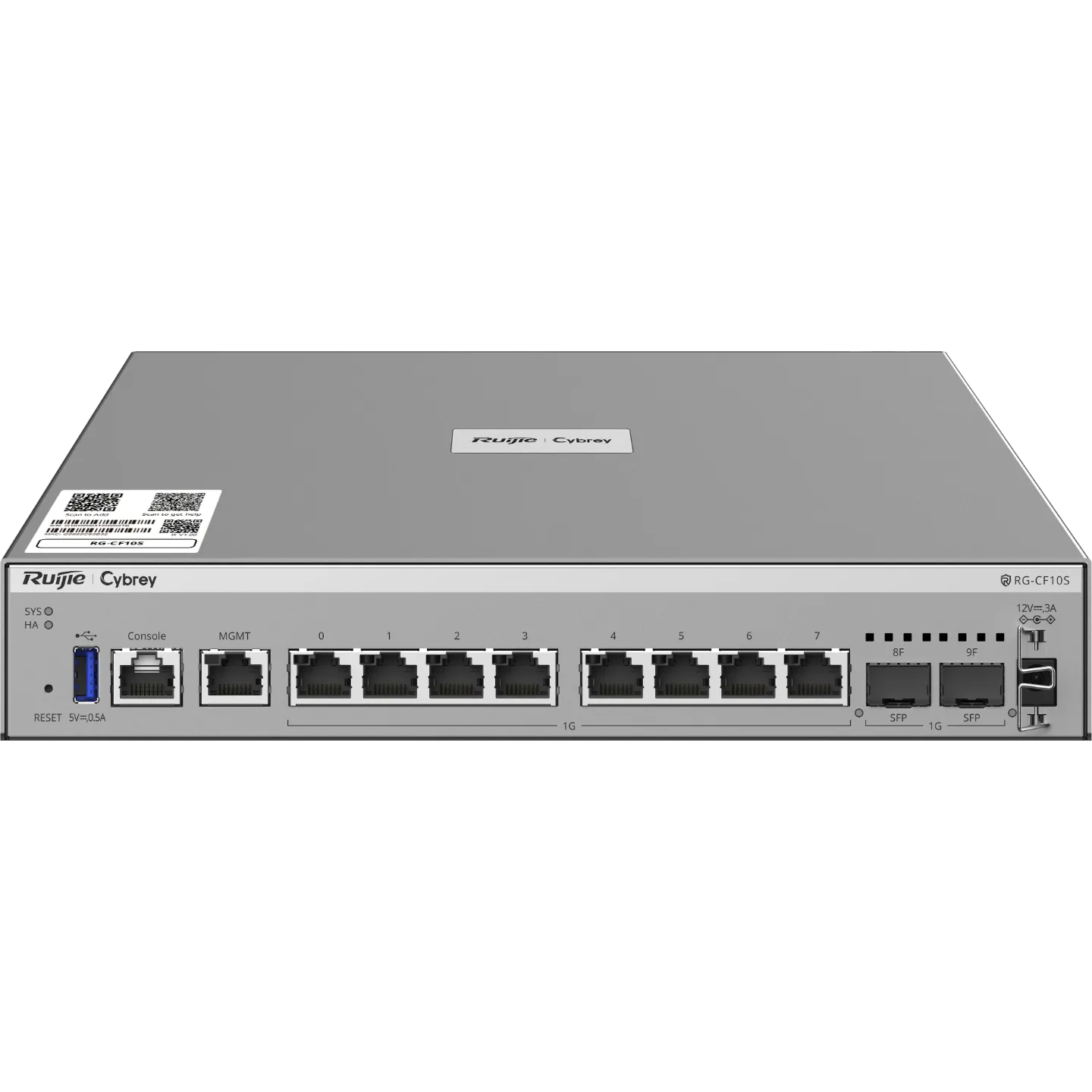

Ruijie Reyee RG-CF10S-LTE-900M-Bundle-3Y

This specific version features the integrated 4G LTE module, optimized 900 Mbps threat protection capabilities, and pre-packaged coverage via a 3-year active All-in-One Security Feature License.

Features

• 900 Mbps Traffic Rating: Configured to push clear 900 Mbps threat protection throughput under full inspection, with performance expanding up to a 1.5 Gbps firewall ceiling depending on rule conditions and deep traffic patterns.
• 3-Year Security Feature Suite: Grants 3 consecutive years of continuous pattern updates and structural network defense subscriptions:
• Intrusion Prevention System (IPS)
• Gateway Antivirus (AV)
• Global and Kaspersky Threat Intelligence integrations (TI-G & TI-K)
• Unified Web URL Filtering & Application Control
• Web Application Firewall (WAF) and autonomous AI Threat Detection protocols
• Free Client Remote VPN: Offers natively supported access for up to 500 concurrent SSL VPN users out of the box with zero per-seat licensing fees, plus hardware-accelerated IPsec VPN tunnel pooling.
• Link Survivability & Load Balancing: Merges physical Multi-WAN ports and cellular LTE signals into an automated intelligent load-balancing matrix. It initiates sub-second automated failover lines if your primary fiber connection drops.
• Cloud Orchestration: Fully integrated with the Ruijie Cloud control infrastructure. It handles unified SD-WAN mesh logic (via AnyLink), structural policy simulation labs, and interactive health tracking using the localized AI Analyzer.

Specifications

• Cellular Data Module: Includes an on-board 4G LTE cellular WAN engine equipped with dual-SIM architecture. It supports a global band spectrum including widespread FDD-LTE, TDD-LTE, and WCDMA networks for absolute carrier decoupling.
• Physical Interface Array: Built with 8 x 10/100/1000BASE-T (GE RJ45) ports (configurable as adaptive LAN/WAN interfaces) along with 2 x Gigabit SFP uplink ports. It includes 1 x RJ45 dedicated management (MGMT) port, 1 x RJ45 console interface, and 1 x USB 3.0 utility port.
• Co-Processing Architecture: Powered by Ruijie's native Dual-Engine architecture, splitting performance between a high-efficiency system CPU and an autonomous SPU (Security Processing Unit) hardware-decryption accelerator. The SPU isolates and decrypts heavy SSL/TLS web sessions independently, keeping system resource ceilings low during thorough packet inspections.
• Physical & Storage Footprint: Contained within a compact desktop/1 RU rack-mountable chassis with natural, silent cooling. It features 64 GB of on-board localized storage. Max system power consumption is highly conservative at under 18W.
