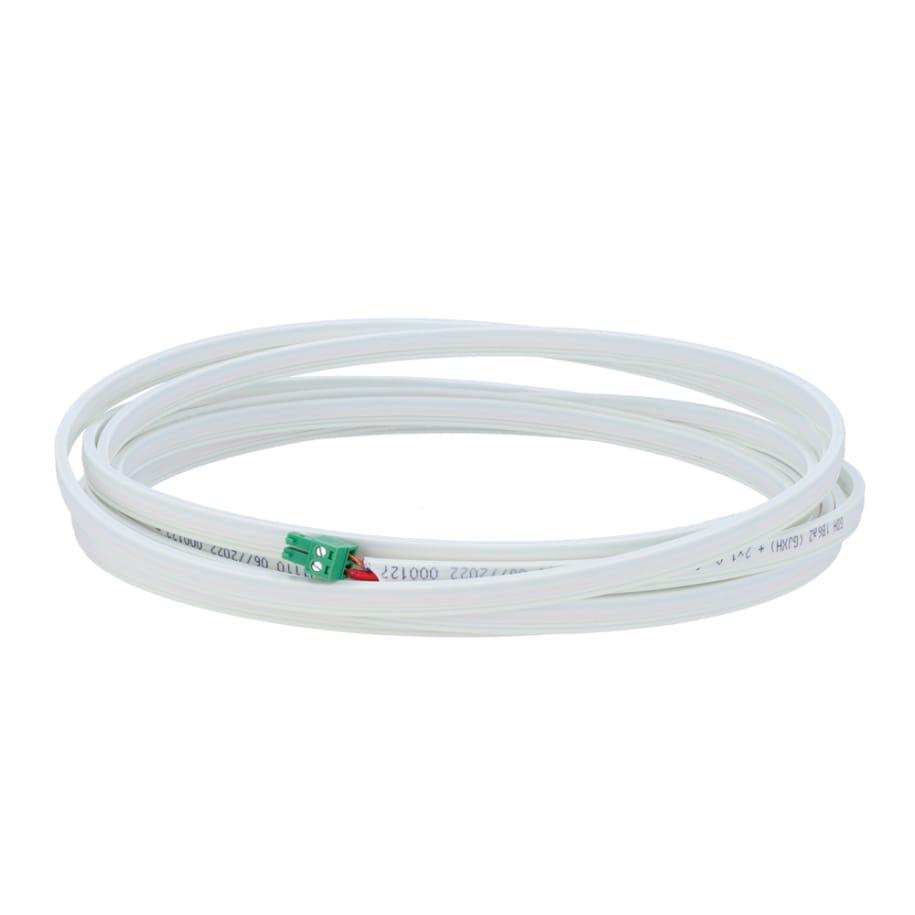

Ruijie Reyee RG-AWG0.2-2SM-305I

Specifications

• Jacket Profile

Compact flat design optimized for clean routing along indoor walls, baseboards, or drops.

• Packaging Form

Standard 305-meter (1,000 ft) industrial pulling spool/roll.

• Fiber Core Type

G.657A2 low-loss, bend-insensitive single-mode silica fiber.

• Cable Architecture

Optoelectronic Hybrid (PoF) featuring 2-core copper wires and 2-core optical fibers running parallel.

• Maximum Tensile Load

200 N (Short term) / 100 N (Long term).

• Operational Lifespan

Rated for a reliable service cycle exceeding 15 years.

• Copper Conductor Gauge

Multi-strand flexible copper with a cross-sectional area of 0.2 mm².

• Rated Operating Voltage

Up to 150V.

• Crush Resistance Profile

1,000 N per 100 mm (Short term).

• Maximum Copper Resistance

92.3 Ω/km (significantly higher resistance than the thicker 0.5 mm² variant, which limits its distance threshold).

• Operating Temperature Limits

-20 °C to 70 °C.

• Optical Attenuation Parameters

• Environmental & Flame Standards

Fully compliant with GB/T 18380.12 flame retardant metrics and RoHS 2.0 eco-protection.

• Insulation Resistance Threshold

≥ 0.013 MΩ·km.

• To Ceiling APs (RG-APF2260(MG))

Up to a maximum drop of 130 meters.

• To Wall-Plate APs (RG-APF1260(MG-P))

Up to 150 meters with local PoE-Out disabled; down to 80 meters if using the AP's pass-through PoE-Out port.

When fed from an e-Lighten active optical splitter (like the RG-SPL2032-SC-P driving 30W PoF budgets), the 0.2 mm² gauge limits maximum transmission spans due to voltage drop over copper
