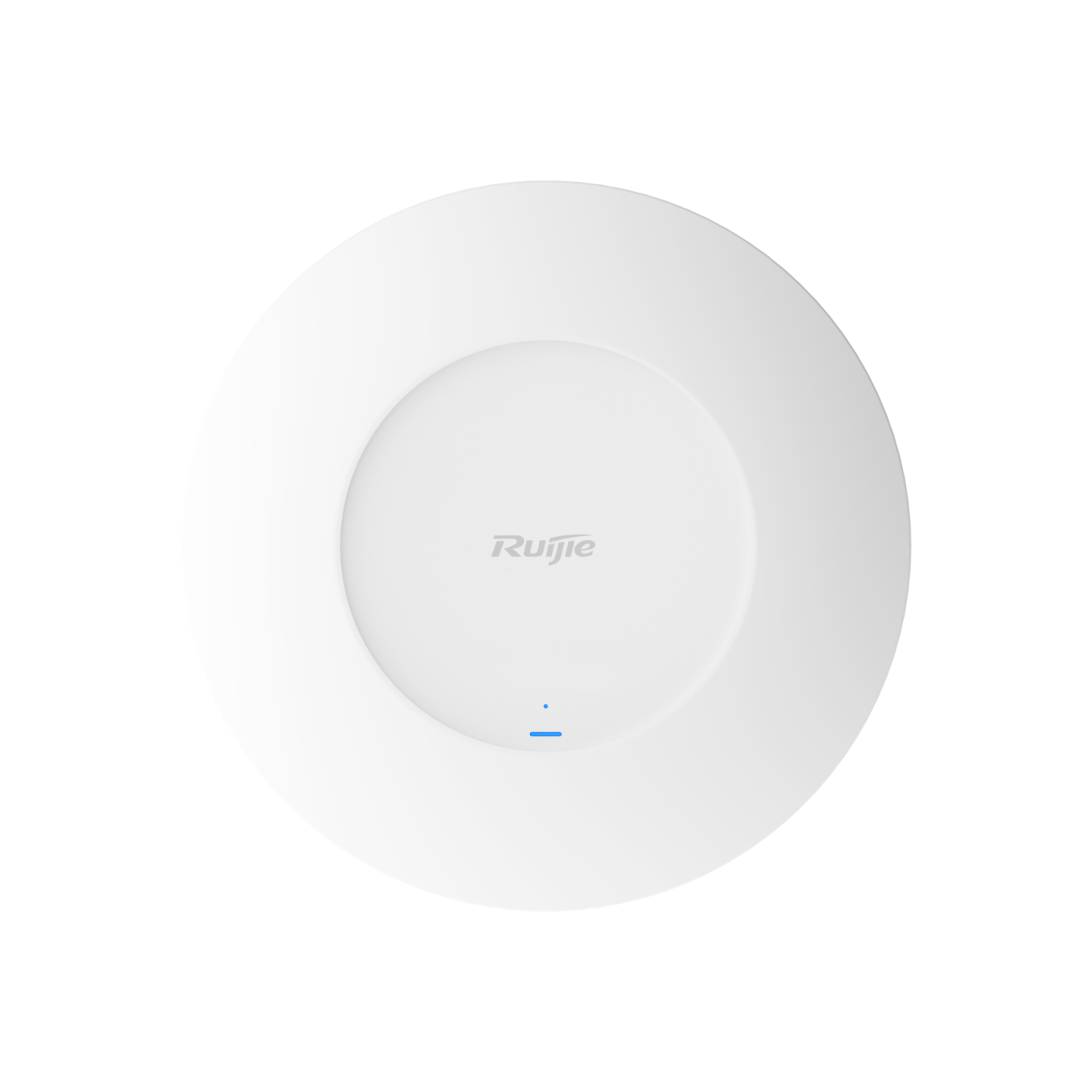

Ruijie Reyee RG-APF2260(MG)
Specifications
- • 5 GHz
- Up to 2,402 Mbps
- • Weight
- 0.36 kg (without brackets).
- • 2.4 GHz
- Up to 574 Mbps
- • Antennas
- Internal omnidirectional coverage arrays optimized for ceiling physics.
- • AI Roaming
- Part of the e-Lighten 2.0 fabric, enabling clients to pass off traffic between traditional copper network access points (such as the standard RG-RAP series) and fiber ONU access points without connection stalls.
- • Dimensions
- Ø 230 mm x 35 mm.
- 3. Local DC Input
- Powered locally using an optional DC 12V/2A power brick.
- • Ethernet Port
- 1 x 10/100/1000Base-T RJ45 LAN/WAN port (supports standard PoE-In).
- • Optical Input
- 1 x 2.5 Gbps SC Optical Port (enables direct hookups to core passive optical networks).
- • MIMO & Streams
- Dual-radio, 4 spatial streams / 5 radio streams (2x2 MIMO on 2.4 GHz + 2x2 MIMO on 5 GHz).
- • Device Capacity
- Supports a maximum registration threshold of up to 512 affiliated clients.
- • Local Power Port
- 1 x standard DC power connector.
- • Wi-Fi Generation
- Wi-Fi 6 (IEEE 802.11ax).
- • Aesthetic Profile
- Features a spherical, low-profile layout measuring only 35 mm (1.38 inches) thick, engineered to stay visually discreet when mounted flat against ceiling or wall infrastructure.
- • Maximum Throughput
- 2,976 Mbps concurrent wireless bandwidth:
- • Hybrid / Power Port
- 1 x Power over Fiber (PoF) input port.
- • Maximum Consumption
- 18 W.
- 1. Power over Fiber (PoF)
- Centralized energy delivered via electro-optical hybrid cables.
- • Cloud Planning & Provisioning
- Fully manageable through the free Ruijie Cloud platform, taking advantage of automated AI Heatmaps and immediate Self-Organizing Network (SON) logic.
- 2. Standard Power over Ethernet (PoE)
- Driven downstream by an 802.3at standard network switch.
- Unlike the wall-plate variants, this unit offers three flexible power pathways depending on structural constraints
