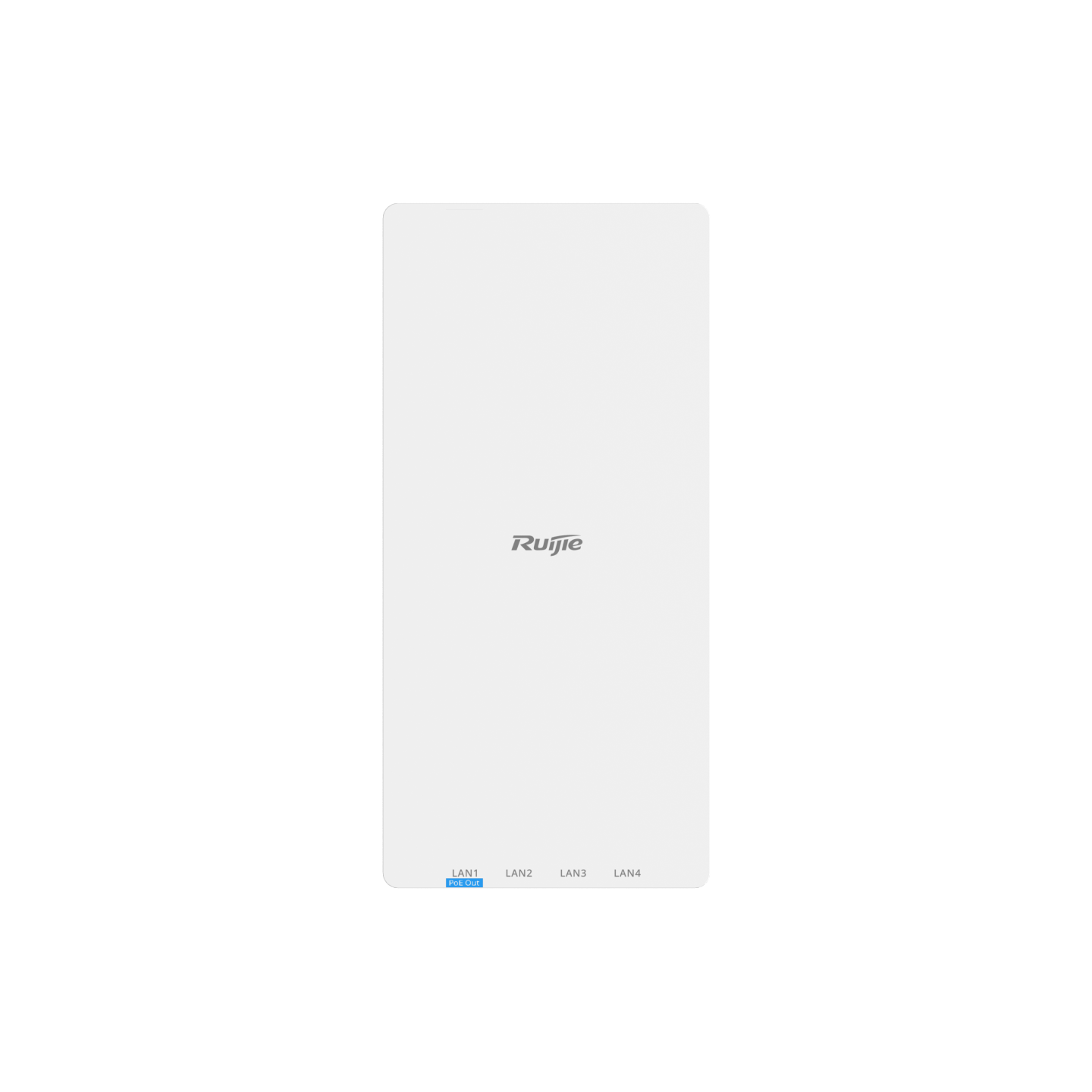

Ruijie Reyee RG-APF1260(MG-P)

Specifications

• 5 GHz

Up to 2,402 Mbps

• 2.4 GHz

Up to 574 Mbps

• LAN Ports

4 x 10/100/1000Base-T RJ45 Gigabit Ethernet ports.

• AI Roaming

Features coordinated fast-handoff logic across rooms so clients don't suffer dropouts while roaming the building.

• Voice Port

1 x RJ11 analog telephone port (featuring built-in Analog-to-IP conversion to upgrade legacy landline hardware with IP voice calling capabilities).

• Uplink Port

1 x 2.5 Gbps SC Optical Port (upgraded from the 1G port on the older APF1250 model).

• Coverage Area

Built-in omnidirectional antennas optimized to cover up to a 55 m² (approx. 592 sq. ft.) room footprint.

• User Capacity

Recommended capacity of up to 76 active clients (supports up to 256 total affiliated device connections).

• Local DC Input

Standard local power using an optional 54V / 1.21A DC terminal power brick (Maximum consumption: 26 W).

• MIMO & Streams

Dual-radio, 4 spatial streams (2x2 MIMO on 2.4 GHz + 2x2 MIMO on 5 GHz).

• PoE Pass-Through

1 x PoE-Out port (54V / 12.95W) specifically designed to directly power an IP phone or standard desk accessory.

• Wi-Fi Generation

Wi-Fi 6 (IEEE 802.11ax).

• Central Management

Fully manageable through the free Ruijie Cloud platform, Reyee App, or Web GUI for immediate topology provisioning via Self-Organizing Network (SON) parameters.

• Power over Fiber (PoF)

Centralized power delivered straight through a hybrid electro-optical cable (Maximum consumption: 23 W).

• Maximum Wireless Throughput

2,976 Mbps combined:

The unit supports a hybrid infrastructure and introduces dual-power versatility depending on how your property is wired
