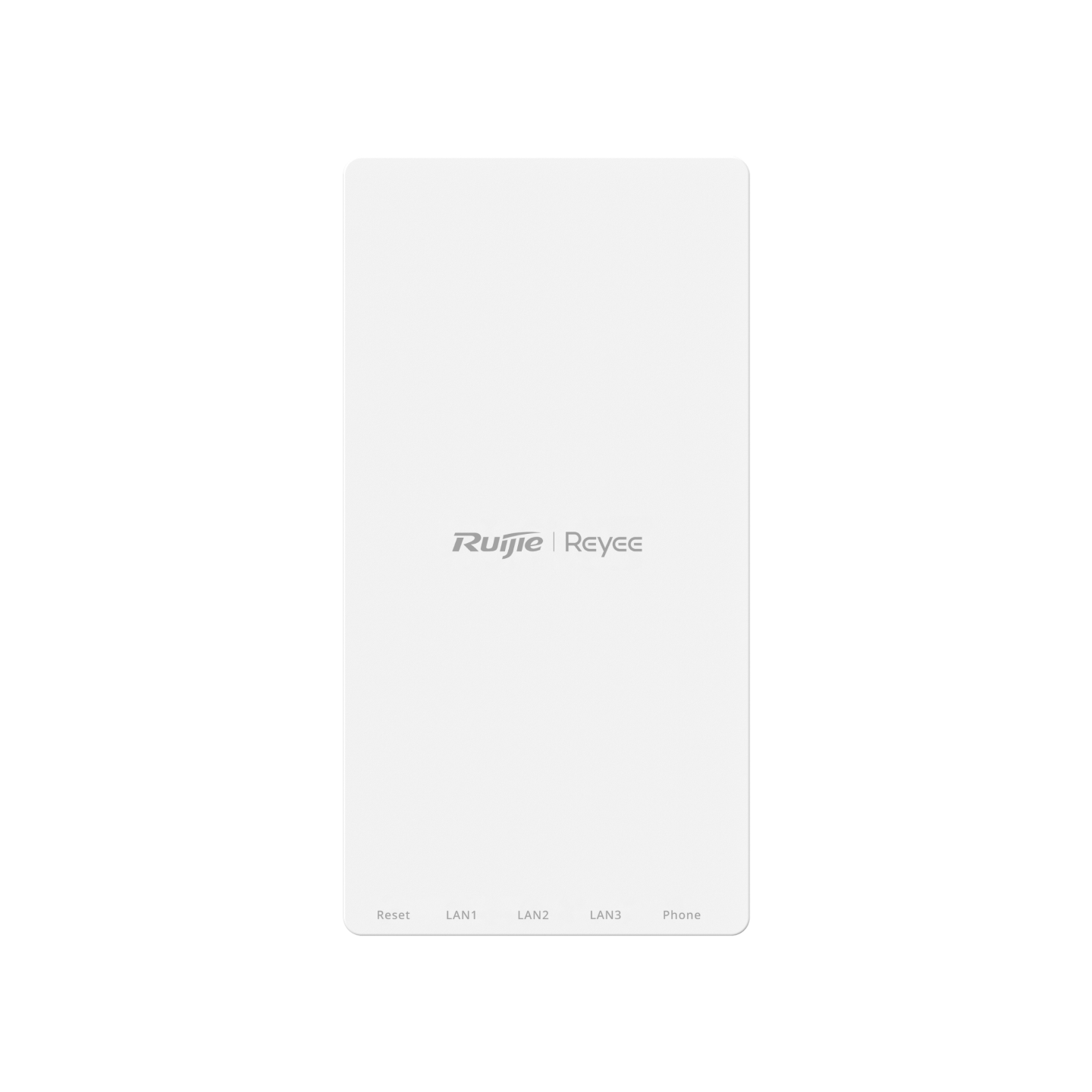

Ruijie Reyee RG-APF1250

Specifications

• 5 GHz

up to 867 Mbps

• 2.4 GHz

up to 300 Mbps

• Antennas

Internal omnidirectional antennas with 2 dBi gain.

• LAN Ports

3 x 10/100/1000Base-T RJ45 Gigabit Ethernet ports (ideal for IPTV boxes, guest PCs, or smart devices).

• AI Roaming

Features continuous layer-3 handoffs between traditional ethernet APs and e-Lighten APs across a property.

• Dimensions

86 mm x 29 mm x 165 mm (Excluding the standard wall-mounting bracket).

• Voice Port

1 x RJ11 analog telephone port (supports traditional VoIP/SIP voice systems).

• Power Input

Powered via DC 12V/1.5A adapter (Note: It does not support standard PoE-in power).

• Uplink Port

1 x 1G SC optical fiber port (connects downstream from your e-Lighten OLT core switches/splitters).

• MIMO & Streams

Dual-radio, 4 spatial streams (2x2 MIMO on 2.4 GHz + 2x2 MIMO on 5 GHz).

• Client Capacity

Optimized for a recommended/maximum load of 32 clients.

• Wi-Fi Generation

Wi-Fi 5 (IEEE 802.11ac Wave 2).

• Maximum Data Rate

1167 Mbps combined throughput:

• Unified Management

Provisions smoothly via Self-Organizing Network (SON) logic through the free Ruijie Cloud platform, localized Web interface, or the Ruijie Reyee mobile app.

• Max Power Consumption

12.95 W.

• Ingress Protection & Environment

IP41 rated; operating temperature range of 0°C to 40°C.
