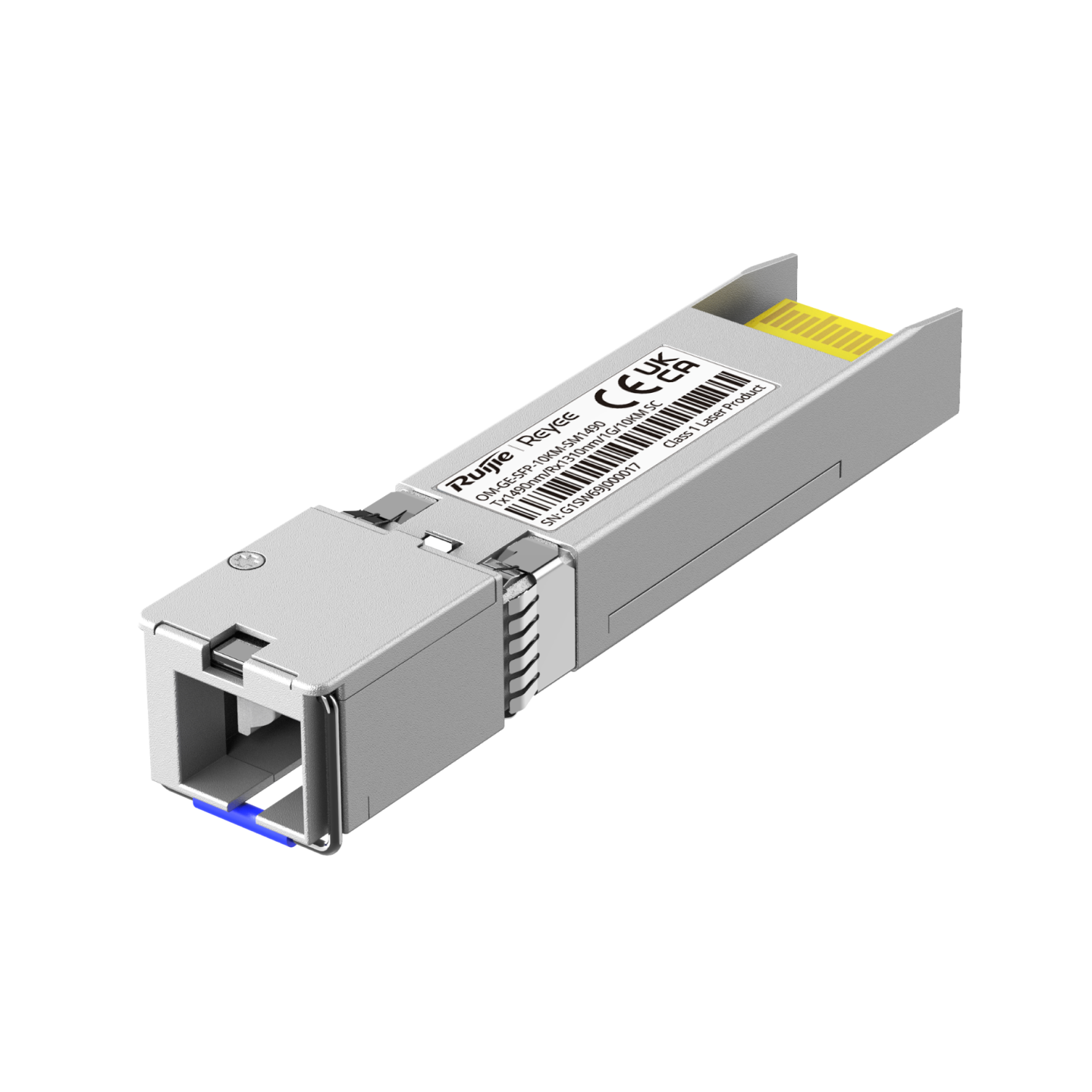

Ruijie Reyee OM-GE-SFP-10KM-SM1490

Specifications

• Weight

0.035 kg (0.08 lbs).

• Data Rate

1.25 Gbps symmetric throughput (1G line-rate).

• Fiber Type

Single-Mode Fiber (SMF).

• Form Factor

Standard hot-swappable Small Form-factor Pluggable (SFP).

• RX (Receive)

Burst-mode 1310 nm (range: 1290 nm to 1330 nm via an APD-TIA receiver).

• Maximum Reach

10 km (approx. 6.2 miles).

• TX (Transmit)

Continuous-mode 1490 nm (laser range: 1480 nm to 1500 nm using a DFB laser).

• Operating Voltage

3.3V DC nominal (Range: 3.14V to 3.46V).

• Optical Wavelengths

• Standards Compliance

Fully compliant with ITU-T G.984 GPON standards.

• Operating Temperature

Standard commercial range of 0°C to 70°C.

• Maximum Power Consumption

< 1.5 W.

• Interface / Connector Type

Simplex SC connector (Single SC fiber strand architecture).

• Receiver Overload Threshold

-12 dBm.

• Transmitter Output Power (TX)

+3 dBm to +7 dBm.

• Receiver Input Sensitivity (RX)

-32 dBm.
