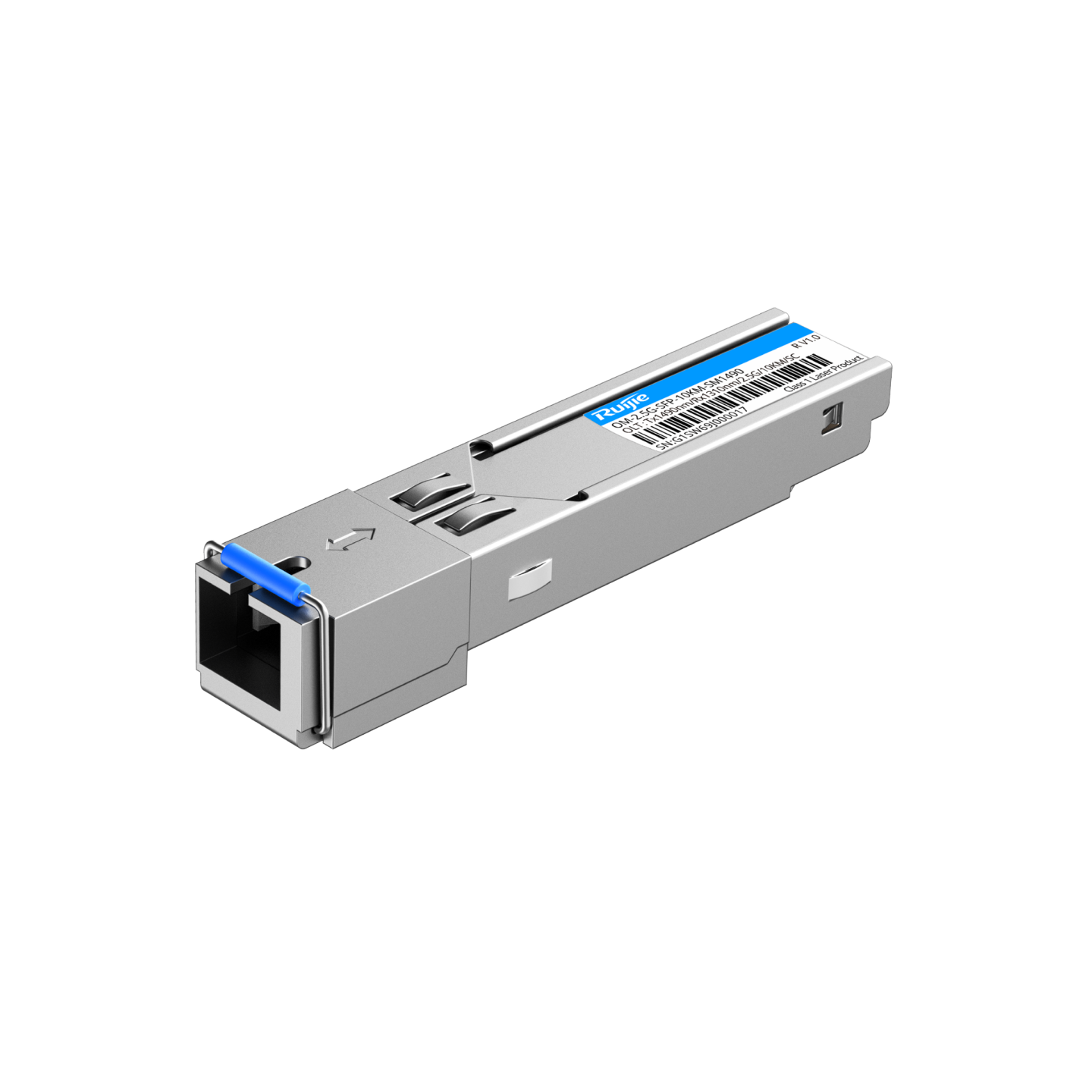

Ruijie Reyee OM-2.5G-SFP-10KM-SM1490

Specifications

• Data Rate

2.5 Gbps continuous/burst symmetric data transport.

• Fiber Type

Single-Mode Fiber (SMF), single-strand architecture (BiDi).

• RX (Receive)

Burst-mode 1310 nm (utilizing an APD-TIA receiver).

• TX (Transmit)

Continuous-mode 1490 nm (utilizing a DFB laser).

• Operating Voltage

3.3V DC nominal (Range: 3.14V to 3.46V).

• Upstream/Core Side

Deployed inside Ruijie Reyee e-Lighten Core OLT Switches (such as the RG-NBF6002M or NBF5300M series running PON-capable line cards).

• Maintenance Feature

Supports standard hot-swapping (can be inserted or extracted safely while the core host slot is powered on).

• Optical Wavelengths

• Receiver Sensitivity

-32 dBm.

• Operating Temperature

Extended range of 0°C to 80°C.

• Average Transmit Power

+3 dBm to +7 dBm (varies up to +6 dBm based on specific production batches).

• Receiver Power Overload

-12 dBm (safe threshold down to -8 dBm).

• Maximum Power Consumption

< 1.5 W (Typically runs at ~1W).

• Interface / Connector Type

Single SC connector (SC/UPC).

• Downstream/Distribution Side

Connects via passive optical splitters (e.g., RG-SPL2016-SC or RG-SPL2032-SC) to terminate into e-Lighten client-side access terminals, remote switches, or PON access points.

• Maximum Transmission Distance

10 km (6.21 miles).

• Digital Diagnostics Monitoring (DDM / DDMI)

Supported. Provides real-time metrics for operating temperature, transceiver voltage, laser bias current, TX power, and RX optical power directly via the OLT interface and Ruijie Cloud.
