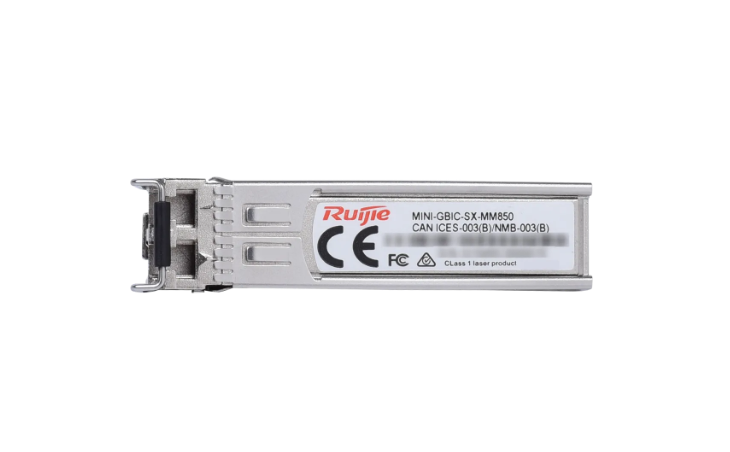

Ruijie Reyee MINI-GBIC-SX-MM850

Features

• Key Specifications
• • Data Rate: 1.25 Gbps (1000BASE-SX Gigabit Ethernet)
• • Fiber Type: Multi-Mode Fiber (MMF)
• • Connector Type: Duplex LC with Ultra Physical Contact (UPC) face finish
• • Target Reach: Up to 550 meters (1,804 feet) over 50/125µm MMF (or up to 275m over older 62.5/125µm MMF)
• • Optical Wavelength: 850 nm
• • Transmitter Type: VCSEL laser
• • Receiver Type: PIN photodiode
• • Power Consumption: ≤ 1.5 W (Energy-efficient, hot-swappable)
• • Diagnostic Capabilities: Supports DDM / DOM (Digital Diagnostic Monitoring for real-time laser parameters and voltage verification).
• Transmitter & Receiver Optical Parameters
• • Max. Transmit Power (AVG): 0 dBm
• • Min. Transmit Power (AVG): –9.5 dBm
• • Receiver Sensitivity (OMA): < –17 dBm
• • Overload Optical Power (AVG): 0 dBm
• • Minimum Extinction Ratio: ≥ 9 dB
• Environment & Compliance
• • Operating Temperature: 0°C to 70°C (32°F to 158°F)
• • Operating Humidity: 10% to 90% Relative Humidity
• • Standards & Compliance: IEEE 802.3z, SFF-8472, SFP MSA, RoHS, and Class 1 Laser Safety.
