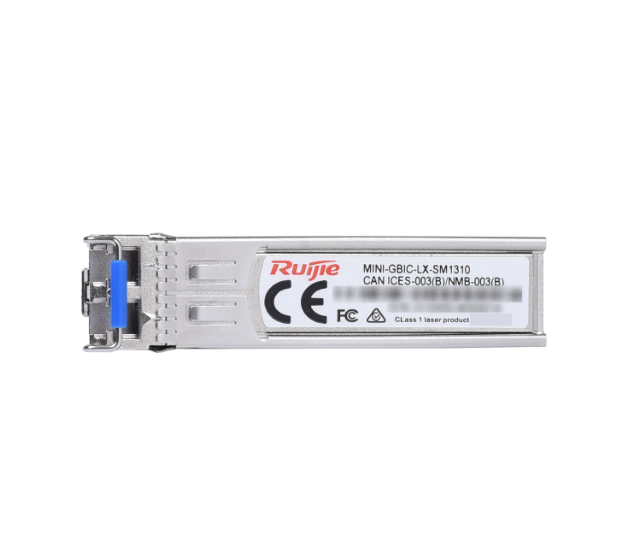

Ruijie Reyee MINI-GBIC-LX-SM1310

Features

• Key Specifications
• • Data Rate: 1.25 Gbps (1000BASE-LX Gigabit Ethernet)
• • Fiber Type: Single-Mode Fiber (SMF)
• • Connector Type: Duplex LC with Ultra Physical Contact (UPC) face finish
• • Target Reach: Up to 10 km (32,808 feet)
• • Optical Wavelength: 1310 nm
• • Transmitter Type: DFB (Distributed Feedback Laser)
• • Receiver Type: PIN photodiode
• • Power Consumption: ≤ 1.5 W (Energy-efficient, hot-swappable)
• • Diagnostic Capabilities: Supports DDM / DOM (Digital Diagnostic Monitoring for real-time voltage, temperature, and optical power tracking).
• Transmitter & Receiver Optical Parameters
• • Max. Transmit Power (AVG): –3 dBm
• • Min. Transmit Power (AVG): –11 dBm
• • Receiver Sensitivity (OMA): < –19 dBm
• • Overload Optical Power (AVG): –3 dBm
• • Minimum Extinction Ratio: ≥ 9 dB
• Environment & Compliance
• • Operating Temperature: 0°C to 70°C (32°F to 158°F)
• • Standards & Compliance: IEEE 802.3z, SFF-8472, SFP MSA, RoHS, and Class 1 Laser Safety.
