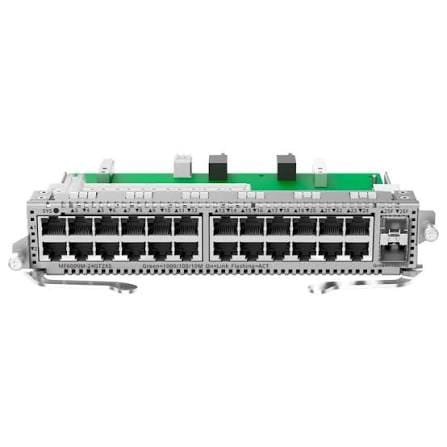

Ruijie Reyee MF6000M-24GT2XS

Specifications

• Form Factor

Occupies 1 modular chassis extension slot

• Uplink Ports

2 x 10G SFP+ optical transceiver slots (for high-speed backbone connections or cascading)

• Forwarding Rate

Up to 132 Mpps

• Network Capacities

Supports a MAC address table size of up to 32,000 entries, 4,000 ARP entries, and up to 4,094 VLANs.

• Switching Capacity

Up to 216 Gbps

• Management Platform

Managed through ReyeeOS via the Ruijie Cloud platform, localized Web GUI, or the Ruijie Reyee mobile application.

• Chassis Compatibility

Exclusively built for the Ruijie Reyee RG-NBF6002M Modular Switch.

• Port Surge Protection

Common mode protection up to 6 kV

• Gigabit Ethernet Ports

24 x 10/100/1000Base-T RJ45 copper ports (for high-density direct wired connections to APs, cameras, and switches)

• Total Physical Interfaces

26 ports per card

When integrated into the Layer 3 modular core switch fabric, the system yields the following performance ceilings
