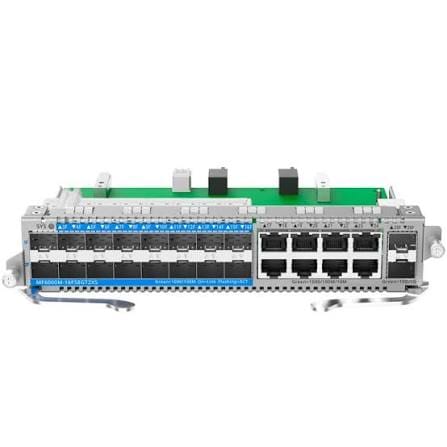

Ruijie Reyee MF6000M-16FS8GT2XS

Specifications

• Card Size

Occupies 1 modular slot in the host chassis

• Management

Managed via ReyeeOS, Web GUI, Ruijie Cloud, and the Ruijie Reyee App.

• Uplink Ports

2 x 10Gbps SFP+ ports

• Chassis Capacity

The RG-NBF6002M supports up to 2 line card slots, meaning you can load up to two of these cards (or mix with other MF6000M series cards like the MF6000M-16GT8SFP2XS or MF6000M-24GT2XS).

• Optical / PON Ports

16 x 1G E-Lighten SFP ports (usable for passive optical networking/PON splitting or standard 1G SFP connections)

• Compatible Host Switch

Ruijie Reyee RG-NBF6002M 1U Layer 3 managed modular core switch / OLT

• Gigabit Ethernet Ports

8 x 10/100/1000Mbps Base-T RJ45 ports

• PON Performance (per device when populated)

Supports up to 16 PON ports per card, 32 ONUs per PON port, and up to 320 ONUs per core switch device with static/dynamic bandwidth allocation (SBA/DBA) and layer isolation.
