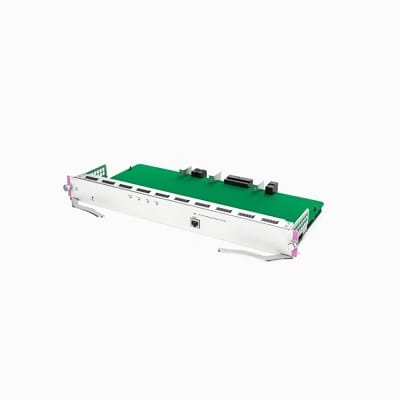

Ruijie Reyee M7006-CM

Specifications

• Device Type

Supervisor Engine Module / Central Control Card

• Hot-Swapping

The card architecture does not support raw operational hot-swapping during standard active load processing; redundant configurations should be provisioned ahead of runtime deployment.

• Brand / Model

Ruijie / Reyee M7006-CM

• System Memory

1 GB DDR3 SDRAM and 256 MB onboard Flash memory

• Thermal Output

< 102.6 BTU/hr

• Management Ports

1 × 10/100 Mbps Out-of-Band Management (MGMT) RJ45 Ethernet port (used for local direct PC connections and uploading programs).

• Physical Profile

438.5 mm × 196 mm × 40.2 mm (Standard CM slot dimensions)

• Power Requirements

• Platform Operations

Built-in environment for ReyeeOS software, featuring deep integration with the Ruijie Cloud App platform for structural Layer 3 functions (OSPF, static routing, security ACLs, VLANs, and QoS management).

• Processor / Compute

1.0 GHz dual-core hardware CPU

• Chassis Compatibility

Installs strictly into the 2 dedicated supervisor slots of the RG-NBS7006 modular chassis (supports 1+1 supervisor engine redundancy).

• Physical Front Controls

Hardware Reset button (for quick chassis reboots) and explicit status LEDs (SYS, Primary, FAN1, FAN2, Power, and Link/ACT).

• Maximum Power Consumption

< 30 W

• Logical Capacities Managed

Orchestrates a global scale of up to 32,000 MAC address entries and 8,000 ARP table entries across the entire chassis environment.
