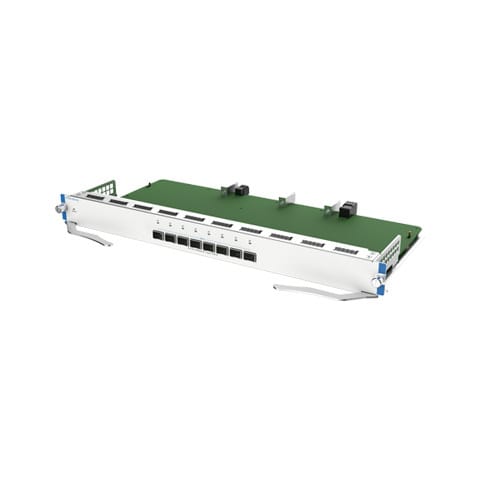

Ruijie Reyee M7000-8XS-EA

Specifications

• Cooling

Rigid industrial metal frame structurally engineered to work directly with the host chassis ventilation and smart fan modules.

• Management

Fully integrated via the primary supervisor engine firmware (Ruijie Cloud app / MACC cloud platform / local eWeb).

• Device Type

High-Speed Fiber Optic Line Card / Service Module

• Brand / Model

Ruijie / Reyee M7000-8XS-EA

• Connector Type

LC (Lucent Connector) type optical connectors

• Interface Ports

8 × 10GE independent optical SFP+ slots

• Hot-Swap Support

Native hot-swapping/hot-plug connectivity across all 8 service ports

• Onboard Hardware

1.0 GHz dual-core CPU, 1 GB DDR3 SDRAM, and 256 MB Flash memory

• Physical Profile

438.5 mm × 196 mm × 40.2 mm (Standard EA slot format); weighs approximately 2.95 kg

• Power Parameters

• Thermal Dissipation

< 136.8 BTU/hr

• Module Speed Support

Backward compatible with both 10 Gbps SFP+ and 1 Gbps SFP transceivers

• Chassis Compatibility

Installs into the RG-NBS7003 and RG-NBS7006 modular chassis switch systems.

• Maximum Power Consumption

≤ 40 W
