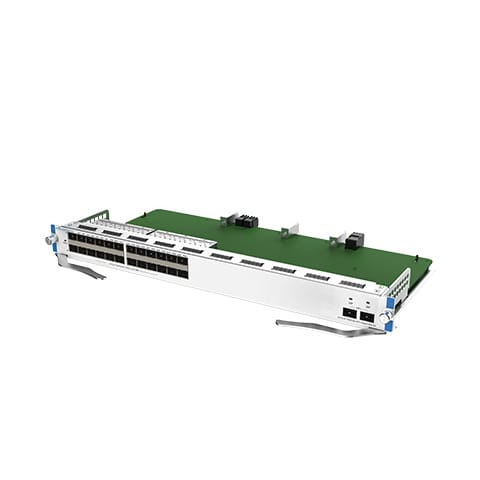

Ruijie Reyee M7000-24SFP2XS-EA

Specifications

• Net Weight

2.00 kg (4.41 lbs) without optical transceiver modules populated.

• Cooling Loop

Fanless board design; strictly relies on the integrated aerodynamic pulled airflow loop driven by the host chassis' high-volume extraction fans.

• Product Type

High-density pure optical expansion line card (EA module format)

• Safety Standard

Certified to GB 4943.1 compliance rules.

• Warranty Support

Includes a 5-year factory warranty scheme synchronized with the underlying chassis hardware lifespan.

• Power Consumption

< 70 Watts at peak utilization (optimized for low-thermal overhead).

• Operating Humidity

10% to 90% RH (non-condensing).

• On-board Processing

1.0 GHz dual-core CPU, 1 GB DDR3 SDRAM, and 256 MB Flash memory

• Thermal Dissipation

Maximum heat index rated at < 239.4 BTU/hr.

• Management Framework

Governed fully by the host chassis’ ReyeeOS firmware. Remote monitoring, automated configuration, and cloud topology maps are managed natively via the Ruijie Cloud Platform/App.

• Chassis Compatibility

Exclusively designed for the RG-NBS7003 (3 service slots) and RG-NBS7006 (6 service slots) modular switch setups.

• Operating Temperature

0°C to 50°C (32°F to 122°F).

• 10G Uplink Trunk Ports

2 × 10Gbps independent SFP+ slots for central backbone aggregation or server stacking (backward compatible with 1Gbps SFP modules).

• Interface Hot Swapping

Individual optical transceiver modules and fiber-optic patch cables support online hot-swapping directly on the service slots. (Note: The entire physical EA line card itself cannot be hot-swapped and requires power isolation during physical insertion/extraction into the chassis).

• Casing Structural Format

Rigid industrial-grade steel layout.

• Dimensions (W × D × H)

438.5 mm × 196 mm × 40.2 mm (17.26 in × 7.72 in × 1.58 in).

• Fiber Distribution Ports

24 × 1Gbps independent SFP slots (LC-type optical connectors) supporting 100/1000Mbps auto-negotiation.

• MTBF (Mean Time Between Failures)

Evaluated for a lifespan exceeding 200,000 operational hours.
