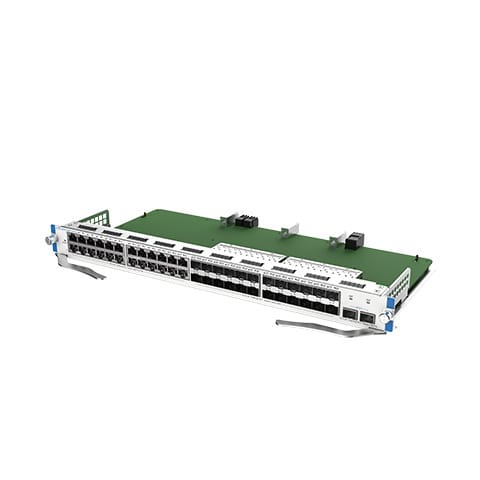

Ruijie Reyee M7000-24GT24SFP2XS-EA
Specifications
- • Cooling
- Fanless design (utilizes the integrated pulled airflow loop from the host chassis' high-volume fan modules).
- • Warranty
- 5 years (aligned with the central host chassis warranty terms).
- • Net Weight
- 2.1 kg (4.63 lbs).
- • Product Type
- High-density hybrid copper/fiber expansion line card (EA module format)
- • Casing Material
- Heavy industrial rigid steel frame.
- • Copper Downlinks
- 24 × 10/100/1000BASE-T RJ45 Gigabit Ethernet ports with auto-negotiation.
- • Hot-Swap Support
- Individual transceivers inserted into the SFP and SFP+ slots support online hot-swapping. (Note: The entire EA expansion card framework itself should be powered off during chassis insertion/extraction).
- • Surge Protection
- Built-in industrial 6 kV lightning/surge protection directly on the electrical physical layers.
- • Power Consumption
- ≤ 75W to 80W at peak loads.
- • Operating Humidity
- 10% to 90% RH (non-condensing).
- • On-board Processing
- 1.0 GHz dual-core CPU, 1 GB DDR3 SDRAM, and 256 MB Flash memory
- • Chassis Compatibility
- Exclusively designed for the RG-NBS7003 (3-slot) and RG-NBS7006 (6-slot) chassis frames.
- • Operating Temperature
- 0°C to 50°C (32°F to 122°F).
- • Management Integration
- Fully cloud-managed via ReyeeOS, integrating into the Ruijie Cloud App or local Web interface for configuration, automatic loop prevention, and live telemetry.
- • Dimensions (W × D × H)
- 438.5 mm × 196 mm × 40.2 mm (17.26 in × 7.72 in × 1.58 in).
- • Fiber Distribution Ports
- 24 × 1Gbps independent SFP slots (LC-type connectors) supporting 100/1000Mbps speeds.
- • 10G Uplink/Backbone Ports
- 2 × 10Gbps SFP+ slots for central backbone core aggregation (backward compatible with 1Gbps SFP transceivers).
- • MTBF (Mean Time Between Failures)
- > 200,000 hours.
