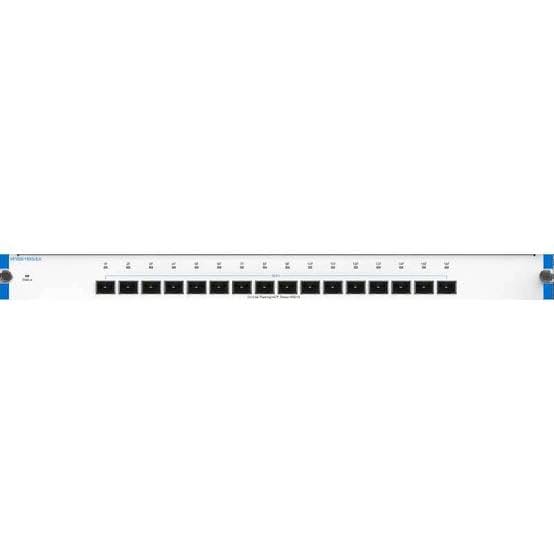

Ruijie Reyee M7000-16XS-EA

Specifications

• Warranty

5 years (synchronized to match the underlying RG-NBS7000 chassis warranty)

• Net Weight

1.75 kg (3.86 lbs)

• Form Factor

EA card slot design format

• Copper Ports

None (Purely optical transport architecture)

• Product Type

High-density 10G optical core line card / service module

• 10G SFP+ Ports

16 × 10Gbps independent SFP+ slots utilizing low-latency LC-type optical connectors

• Network Management

Synchronizes automatically with the central chassis ReyeeOS firmware; managed via Ruijie Cloud or the localized eWeb interface.

• Operating Humidity

10% to 90% RH (non-condensing)

• Hot-Swap Capability

Supports hot-swapping for individual optical transceiver modules and patch cables.

• On-board Processing

1.0 GHz dual-core CPU, 1 GB DDR3 SDRAM, and 256 MB Flash memory

• Storage Temperature

-40°C to 70°C (-40°F to 158°F)

• Lightning Protection

Built-in ±6kV common mode and ±6kV differential mode system protection

• Chassis Compatibility

Designed strictly for the M7000 series framework (RG-NBS7003 & RG-NBS7006)

• Operating Temperature

0°C to 50°C (32°F to 122°F)

• Dimensions (W × D × H)

438.5 mm × 196 mm × 40.2 mm (17.26 in × 7.72 in × 1.58 in)

• Maximum Power Consumption

≤ 82 Watts (Maximum thermal dissipation rated at < 280.44 BTU/hr)

• MTBF (Mean Time Between Failures)

> 200,000 hours
