Networking

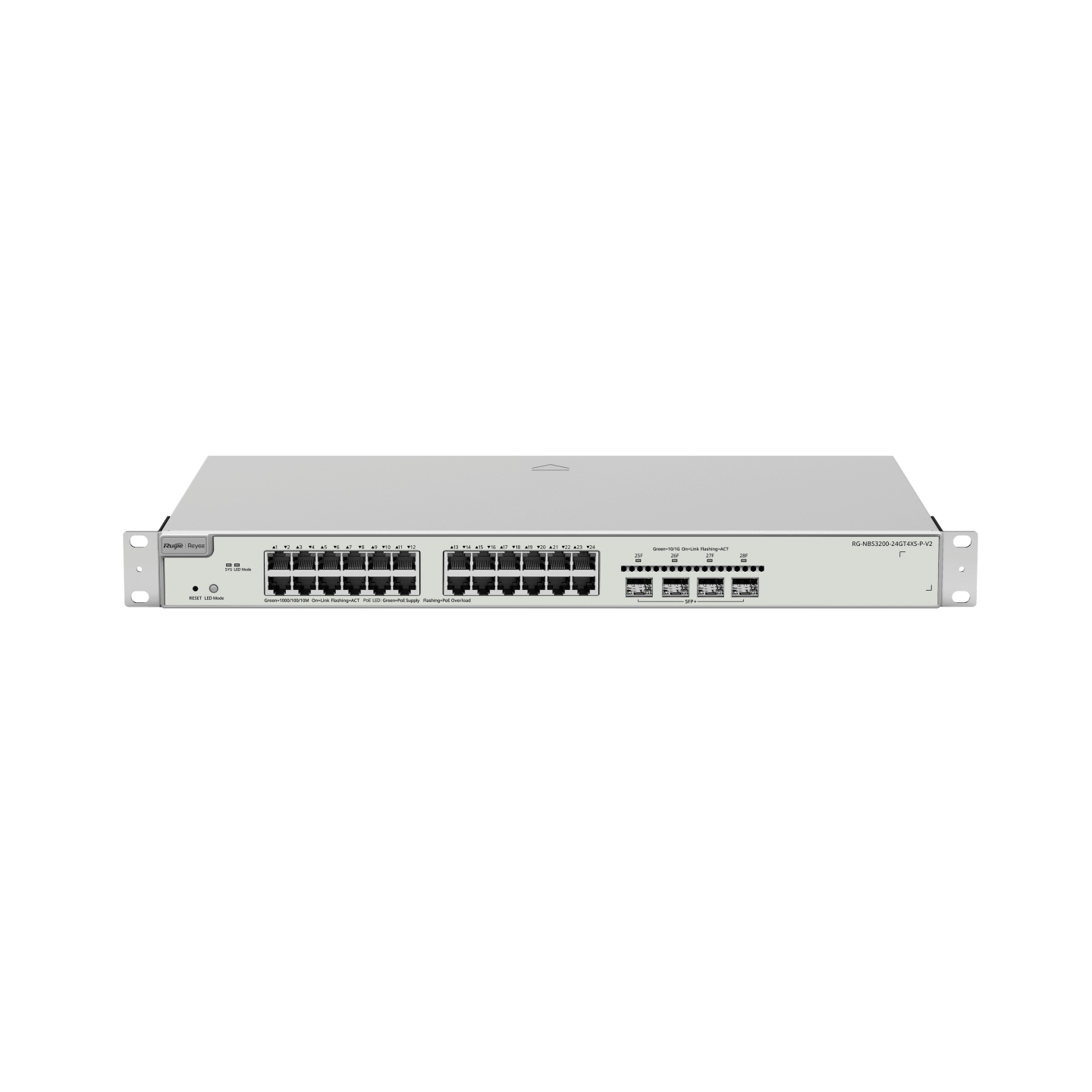

Ruijie Reyee M6000-24GT2XS
Specifications
- • Warranty
- 5 years (synchronized to align with the central chassis warranty terms)
- • Net Weight
- 0.90 kg (1.98 lbs)
- • Copper Ports
- 24 × 10/100/1000BASE-T RJ45 Gigabit Ethernet ports
- • Product Type
- Expansion service module / line card
- • Power Consumption
- ≤ 20.6 W (significantly more power-efficient than the fiber-heavy M6000-16SFP8GT2XS)
- • Operating Humidity
- 10% to 90% RH (non-condensing)
- • Software Management
- Unified and controlled via the main chassis' ReyeeOS firmware (accessible through Ruijie Cloud or the web-based eWeb interface)
- • Storage Temperature
- -40°C to 70°C (-40°F to 158°F)
- • Chassis Compatibility
- Designed exclusively for the RG-NBS6002 modular core switch
- • Operating Temperature
- 0°C to 50°C (32°F to 122°F)
- • Dimensions (H × W × D)
- 40.3 mm × 227 mm × 210 mm (1.59 in × 8.94 in × 8.27 in)
- • SFP+ Ultra-High-Speed Ports
- 2 × 10Gbps SFP+ uplink slots (also backwards-compatible with standard 1Gbps SFP fiber modules)
- • MTBF (Mean Time Between Failures)
- > 200,000 hours
