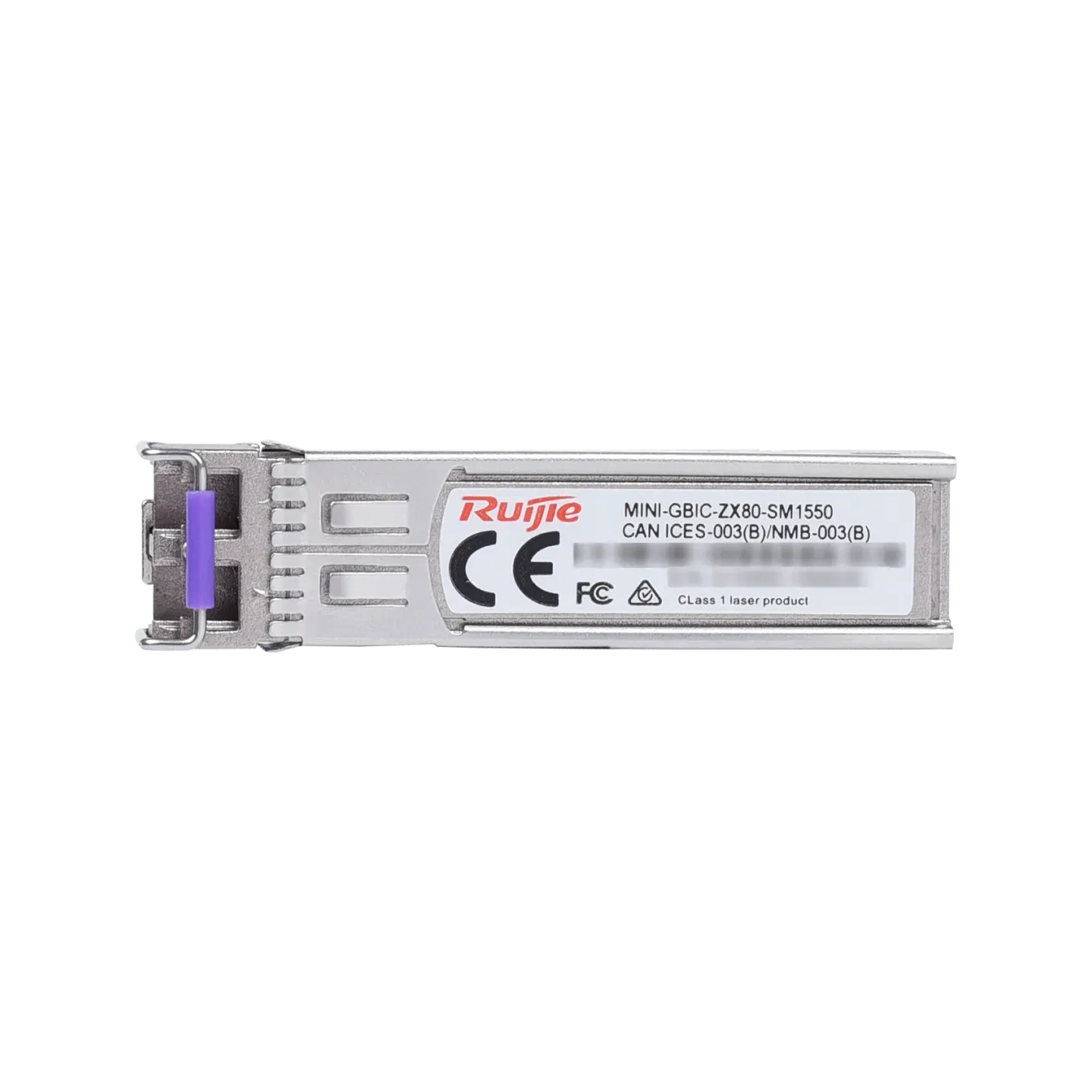

Ruijie MINI-GBIC-ZX80-SM1550
Features
- • Extended Reach Transmission: Leverages the low-attenuation properties of the 1550 nm wavelength window to bridge remote network installations up to 80 km away without mid-span amplification.
- • Digital Diagnostics Monitoring (DDM/DOM): Supports full real-time telemetry monitoring compliant with SFF-8472 industry standards. Network administrators can track operating metrics—such as supply voltage, module temperature, laser bias current, and real-time optical TX/RX power levels—directly via the switch interface.
- • Standard SFP Footprint: Engineered entirely around SFP Multi-Source Agreement (MSA) footprint limitations. It is easily hot-swappable, allowing for immediate physical installation or component replacement inside a live system switch or router port without causing general uptime interruption.
- • Universal Dual-Fiber Pairing: Operates on a standard pair of fiber optic cores (one dedicated to transmitting, one to receiving). Unlike single-fiber BiDi optics, it does not require an inverted model at the other end; you deploy the identical MINI-GBIC-ZX80-SM1550 transceiver on both sides of the cable link.
Specifications
- • Data Rate
- 1.25 Gbps (Gigabit Ethernet)
- • Fiber Type
- Single-Mode Fiber (SMF)
- • Wavelength
- 1550 nm (Center Wavelength)
- • Form Factor
- SFP (mini-GBIC), hot-pluggable
- • Receiver Type
- PIN Photodiode
- • Connector Type
- Duplex LC
- • Maximum Distance
- Up to 80 kilometers (80 km)
- • Transmitter Type
- Distributed Feedback (DFB) Laser
- • Power Consumption
- ≤ 1.5 W
- • Receiver Sensitivity
- < -27 dBm
- • Maximum Transmit Power
- +5 dBm
- • Minimum Transmit Power
- 0 dBm
- • Optical Power Overload
- -3 dBm
- • Optical Budget Parameters
- • Ethernet Standard Compliance
- 1000BASE-ZX
