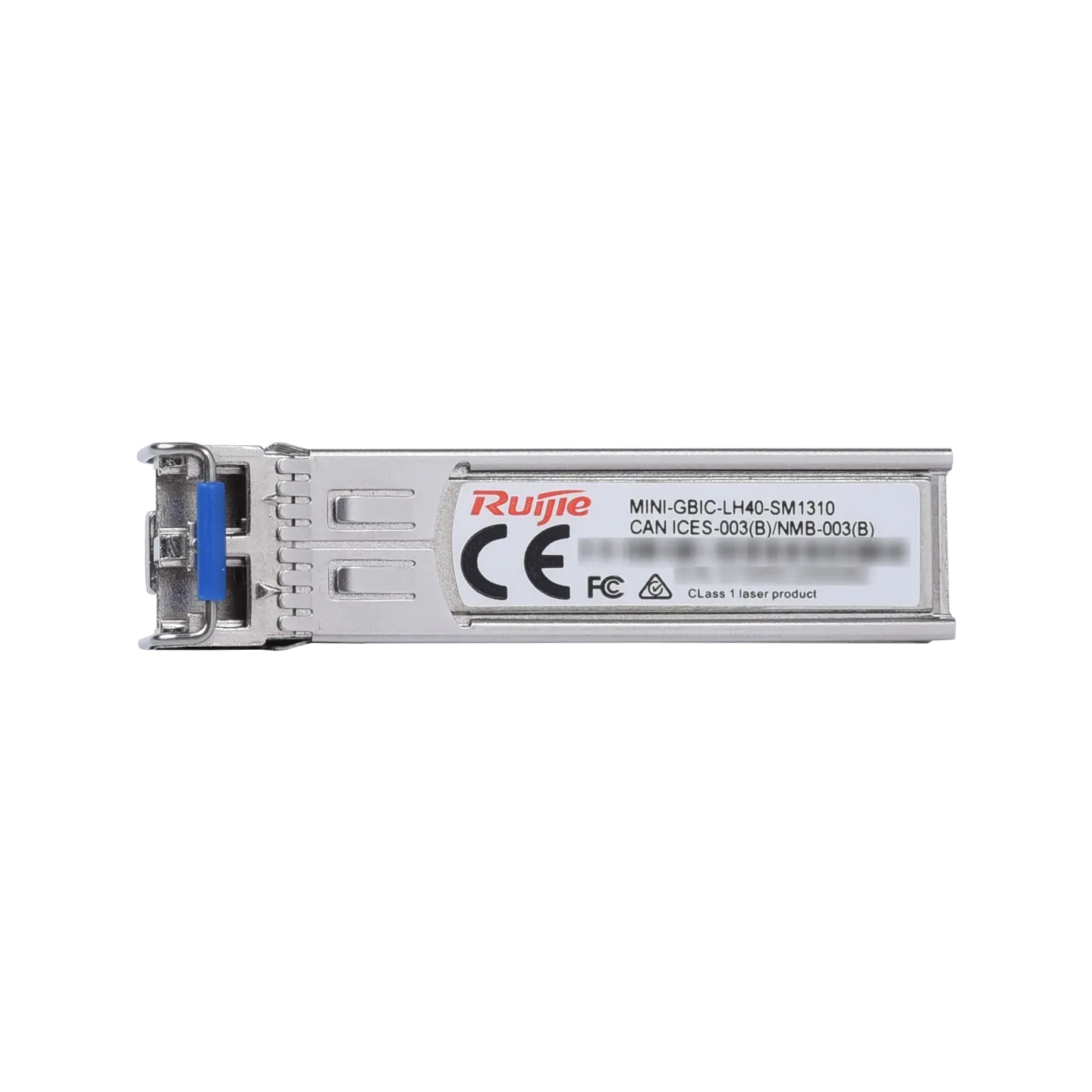

Ruijie MINI-GBIC-LH40-SM1310
Features
- • Extended Long-Haul Reach: Reliably bridges network segments separated by up to 40 km using standard single-mode optical fiber cabling infrastructure.
- • Digital Diagnostics Monitoring (DDM/DOM): Equipped with full real-time diagnostics support compliant with SFF-8472 standard protocols. Network administrators can actively track operating temperature, supply voltage, laser bias current, and transmitted/received optical power levels.
- • Standard Dual-Fiber Operation: Operates over standard duplex fiber paths using a Duplex LC setup. Unlike BiDi modules, it does not require an inverted wavelength matching model at the other end—you use the exact same part number on both sides of the link.
- • Broad Framework Compliance: Fully compliant with SFP Multi-Source Agreement (MSA), IEEE 802.3z, Class 1 Laser safety certifications, and RoHS environmental guidelines.
Specifications
- • Data Rate
- 1.25 Gbps (Gigabit Ethernet)
- • Fiber Type
- Single-Mode Fiber (SMF)
- • Wavelength
- 1310 nm
- • Form Factor
- SFP (mini-GBIC), hot-pluggable
- • Receiver Type
- PIN Photodiode
- • Connector Type
- Duplex LC
- • Transmit Power
- -5 dBm to 0 dBm
- • Maximum Distance
- Up to 40 kilometers (40 km)
- • Transmitter Type
- Distributed Feedback (DFB) Laser
- • Power Consumption
- ≤ 1.5 W
- • Receiver Overload
- -3 dBm
- • Receiver Sensitivity
- < -23 dBm
- • Optical Budget Parameters
- • Ethernet Standard Compliance
- 1000BASE-LH (Long Haul) / 1000BASE-EX
