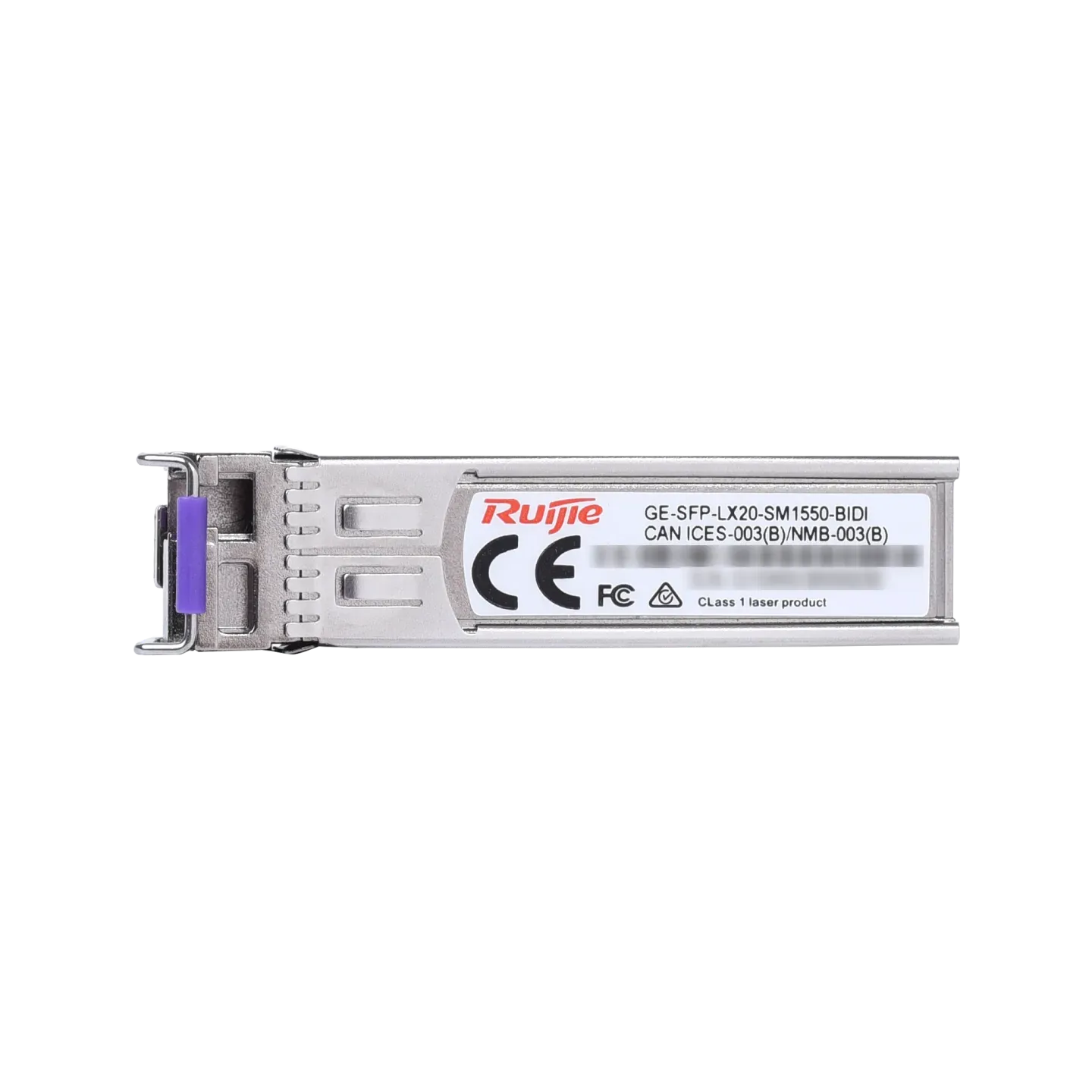

Ruijie GE-SFP-LX20-SM1550-BIDI
Mid-range, single-fiber bi-directional (BiDi) SFP optical transceiver designed to offer efficient 1Gbps Gigabit Ethernet over a single strand of single-mode fiber
Features
- • Perfect Cross-Pairing Architecture: This module is engineered specifically to operate opposite the GE-SFP-LX20-SM1310-BIDI module on the far end of the connection. Because it transmits data at 1550 nm and listens at 1310 nm, pairing them enables two-way traffic over a single fiber core, maximizing infrastructure efficiency.
- • Digital Diagnostics Monitoring (DDM/DOM): Supports full real-time diagnostics compliant with SFF-8472 standard protocols. This allows network administrators to view live metrics like internal operating temperature, laser bias current, voltage, and receiver/transmitter optical power from the switch CLI.
- • Rugged Infrastructure Layout: Housed in a dense metal casing that optimizes heat dissipation. It is Class 1 Laser safety certified and RoHS compliant, ensuring stable operations within commercial temperature bounds (0°C to 70°C).
- • MSA Standard Hot-Swapping: Conforms to standard SFP Multi-Source Agreement (MSA) metrics. It can be safely inserted or hot-swapped into live Ruijie data center or enterprise campus core switches without interrupting adjacent hardware links.
Specifications
- • Data Rate
- 1.25 Gbps (Gigabit Ethernet)
- • Fiber Type
- Single-Mode Fiber (SMF)
- • Wavelength
- TX 1550 nm / RX 1310 nm
- • Form Factor
- SFP (mini-GBIC), hot-pluggable
- • Receiver Type
- PIN Photodiode
- • Connector Type
- Simplex LC (BIDI LC with Ultra Physical Contact / UPC finish)
- • Transmit Power
- -9 dBm to -3 dBm
- • Maximum Distance
- Up to 20 kilometers (20 km)
- • Transmitter Type
- Distributed Feedback (DFB) Laser
- • Power Consumption
- ≤ 1.5 W
- • Receive Sensitivity
- < -20 dBm
- • Overload Optical Power
- -3 dBm
- • Optical Budget Parameters
- • Ethernet Standard Compliance
- 1000BASE-LX
