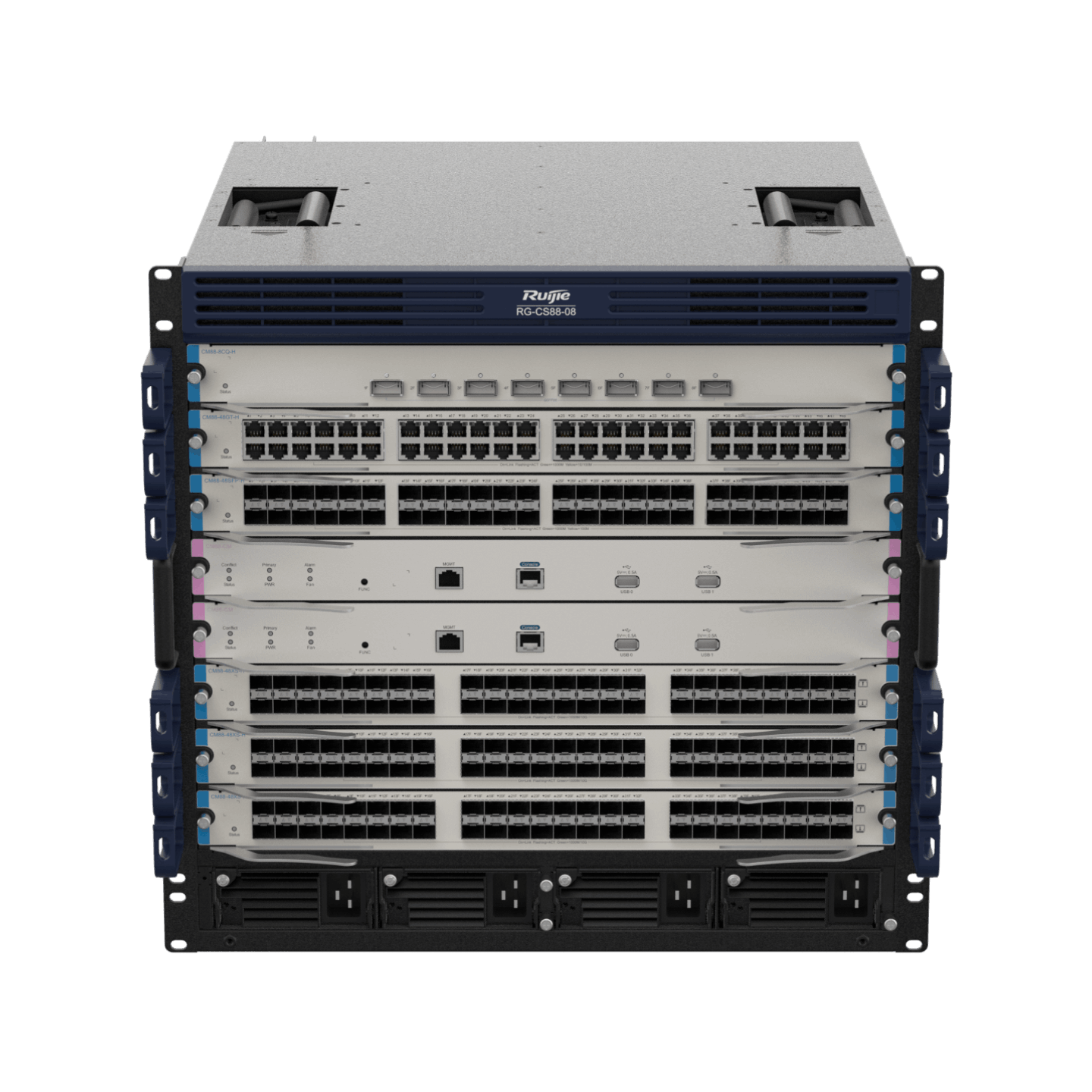

Ruijie CM88-CM

Features

• • Active-Active Active-Standby Redundancy: The RG-CS88-08 chassis provides 2 slots for supervisor engine modules. Deploying a second CM88-CM module unlocks 1+1 control plane redundancy with synchronized stateful switchovers, keeping the network online if the primary supervisor encounters a physical fault.
• • Integrated Switch Fabric Core: Houses the master central crossbar routing processor, directly instructing all 6 attached high-density line cards (like the 10G or 100G service modules) to deliver line-rate non-blocking traffic.
• • Chassis-Level Hot-Swapping: Built with high-availability enterprise hardware protocols, allowing the module to be added, swapped, or maintained without shutting down the chassis or interrupting data flow across connected system links.
• • Dual-Chip Boot Redundancy: Configured with a hardware-enforced 1+1 BootROM redundancy layout split across two separate flash chips. If a firmware sync error occurs during a background OS installation, the secondary chip instantly rollbacks the control plane safely.
• • Granular Array Telemetry: Outfitted with a complete multi-tier LED tracking bank on the front panel. It provides instant visual signaling for System Initialization, Primary/Standby roles, Component Module Conflict status, Fan position faults, Power errors, and Temperature threshold alerts.
• • Unified Lifecycle Orchestration: Automatically registers and provisions itself once slid into the host chassis backplane. It bridges the entire machine into the lifetime-free Ruijie Cloud app or web interface for unified corporate topology monitoring, automated diagnostic collection, and secure remote configurations alongside industrial CLI and SNMPv3 policies.
