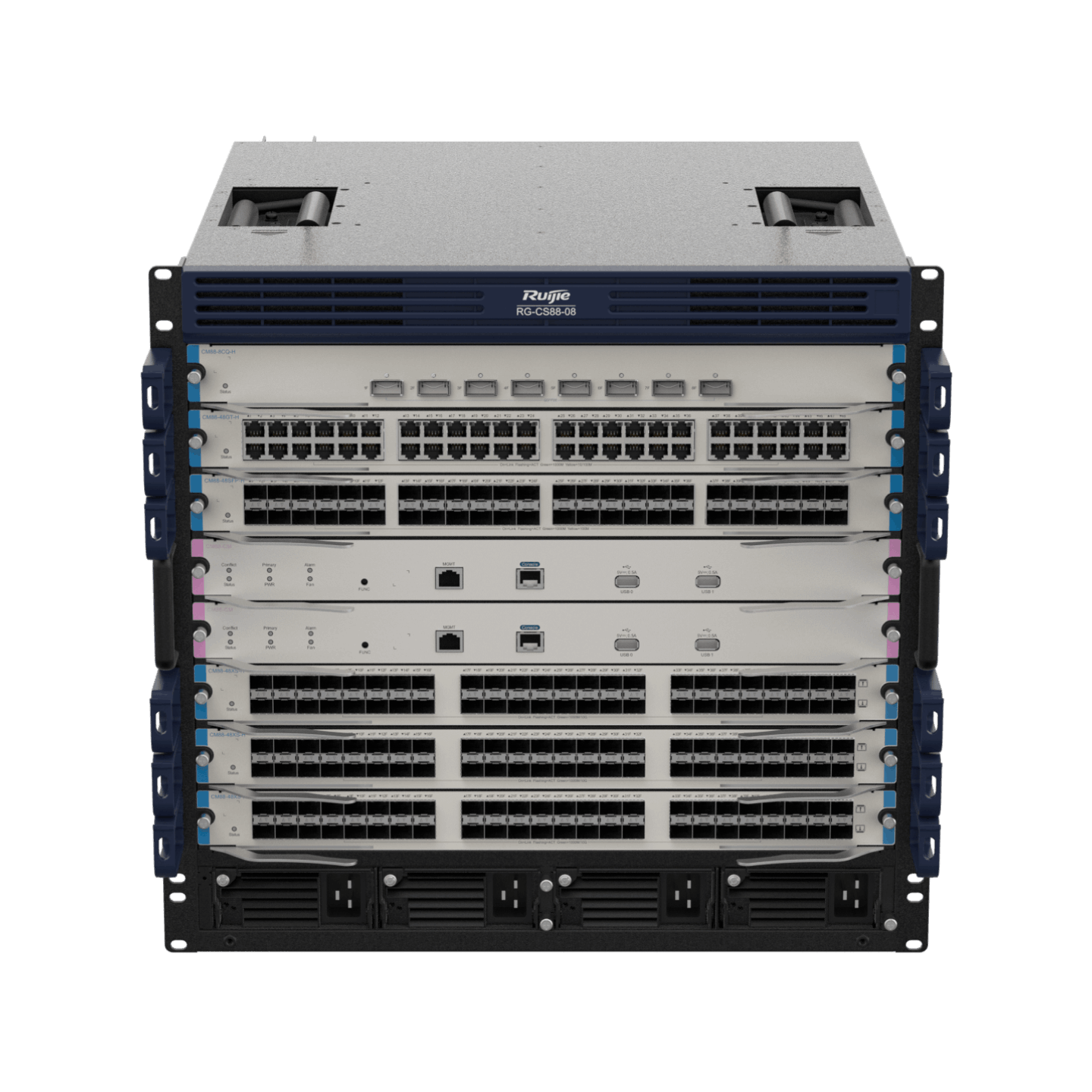

Ruijie CM88-48XS-H

Features

• Hot-Swappable Chassis Integration: Supports full service-port and chassis-level hot-swapping. It can be slid effortlessly into any of the 6 available service line slots on the RG-CS88-08 without interrupting concurrent live traffic processing on surrounding cards.
• Dual-Chip Boot Redundancy: Built with 1+1 BootROM redundancy driven by dual hardware flash chips. If a firmware sync error occurs during a system update, the backup chip automatically steps in to prevent the card from failing or bricking.
• Advanced Access Control Matrix: Supports massive Access Control Lists, accommodating up to 4,500 Ingress ACEs and 2,000 Egress ACEs for highly granular, hardware-enforced corporate data filtering and security segmentation.
• Line-Rate Non-Blocking Architecture: Feeds directly into the host switch's central multi-terabit Clos crossbar switching fabric. This guarantees that all 48 ports can run at absolute full 10 Gbps speeds simultaneously without creating inter-module bandwidth bottlenecks.
• Telemetry and Cloud Lifecycle Control: Automatically checks in with the lifetime-free Ruijie Cloud platform once docked into the host chassis. This unlocks zero-touch automated setup, real-time traffic mapping, visual VLAN overlays, and instant alert pushes alongside traditional

• Note: If a 1GE module is deployed, the port interface must be manually forced to configure speed, duplex mode, and flow control.
• ARP Entries: Houses up to 50,000 underlay ARP tables
• Module Type: High-Performance Service Module / Line Card.
• Routing Tables: Supports up to 134,000 IPv4 unicast routes and 50,000 IPv6 unicast routes directly inside the shared database.
• Fixed Service Ports: 48 x 1GE/10GE SFP+ independent slots using LC-type optical connectors.
• On-Board Processing: Packados with an independent 1.5 GHz quad-core processor, 2 GB DDR4 RAM, and 8 GB Flash memory.
• MAC Address Capacity: Increases global address registration up to 96,000 MAC entries (with 40,000 static addresses).
• Massive Switch Buffer: Features a localized 32 MB packet buffer (four times larger than the 8 MB buffer on the gigabit line cards) to absorb heavy micro-burst traffic congestion smoothly.
• Multi-Rate Fiber Support: Natively supports both 10 Gigabit (10GE SFP+) and 1 Gigabit (1GE SFP) optical modules, as well as Direct Attach Copper (DAC) and Active Optical Cables (AOC).
• Hardware Scale Limits (Card-Level Access)
