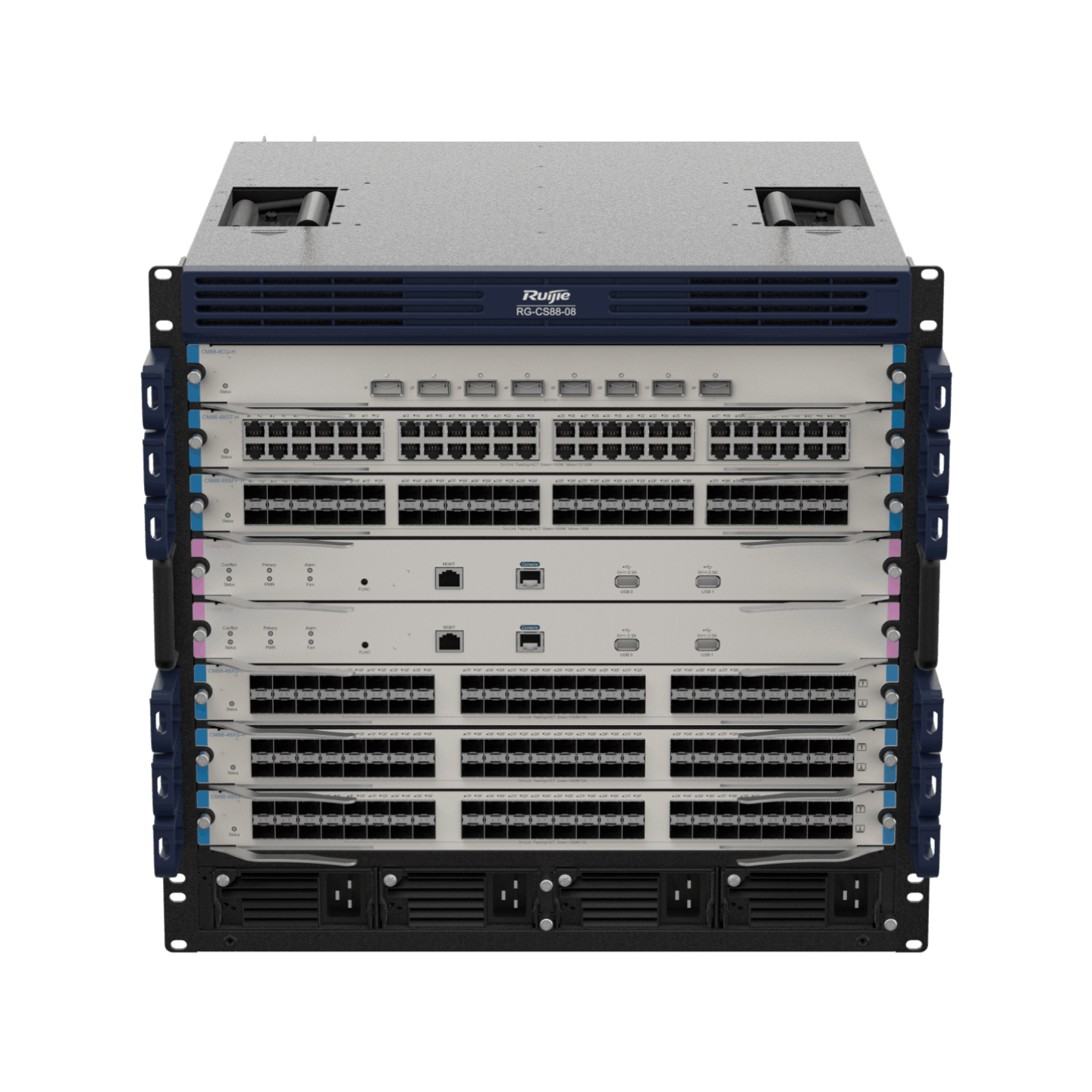

Ruijie CM88-48GT-H
Features
- • Chassis-Level Hot-Swapping: Allows seamless installation or replacement of the module into any of the 6 available service slots on the RG-CS88-08 chassis without disrupting live traffic on neighboring line cards.
- • Hardware Boot Redundancy: Equipped with dual hardware boot chips (1+1 BootROM redundancy across two localized flash chips) ensuring fail-safe rollbacks if an OS sync gets corrupted.
- • Intelligent Status Tracking: Features a comprehensive LED array including an individual status indicator per copper port (changing colors from Green at 1000M to Yellow at 10/100M speeds) and a Master system fault health tracker.
- • Carrier-Grade Reliability Integration: Leverages the RG-CS88-08 crossbar/Clos backplane architecture to route heavy enterprise traffic line-rate, while leaning on native CPP (CPU Protection Policy) and NFPP to shield the control layer from scanning or DDoS floods.
- • Unified Lifecycle Orchestration: Fully controlled, managed, and upgraded seamlessly via the centralized Ruijie Cloud platform or standard enterprise CLI when docked into the host environment.
Specifications
- • Module Type
- Line Card / Service Interface Module.
- • MAC Addresses
- Maps up to 80,000 global MAC addresses.
- • Switch Buffer
- 8 MB localized line-card buffer (integrated into the massive 32 MB chassis system framework).
- • Physical Profile
- Hot-swappable module card weighing 3.1 kg (6.83 lbs).
- • Power & Efficiency
- Draws less than 75W max power when fully operational.
- • Fixed Service Ports
- 48 x 10/100/1000BASE-T RJ45 auto-negotiating copper ports.
- • On-Board Processing
- Quad-core 1.5 GHz processor, 2 GB DDR4 SDRAM, and 8 GB Flash storage.
- • Transmission Medium
- Standard Cat 5/5e/6 UTP copper cabling (up to 100 meters).
- • Database Scaling (Chassis-Integrated)
