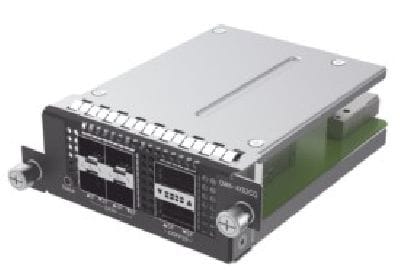

Ruijie CM85-4XS2CQ
Features
- Key Features
- • Flexible Breakout Modes: The 100G QSFP28 ports support multi-rate configuration and channel splitting:
- • 100G mode can be broken down into 4 x 25G channels.
- • 40G mode can be broken down into 4 x 10G channels.
- • Hot-Swappable Design: Allows you to insert or remove the module seamlessly without shutting down or interrupting the main switch operation.
- • Instant Status Monitoring: Features integrated front-panel LED indicators for immediate link status, speed, and traffic activity tracking per port.
- • Jumbo Frame Support: Processes large data payloads up to 9216 bytes to optimize throughput and reduce CPU overhead across core network trunks.
Specifications
- • SFP+ Ports
- 4 x 1GE/10GE SFP+ ports (supports 1 Gbps or 10 Gbps fiber/copper transceivers).
- • Device Type
- Interface Expansion Module / Slot Component.
- • Total Ports
- 6 high-speed uplink ports.
- • Power Impact
- Increases overall switch power consumption by approximately 25W when installed (e.g., boosting switch load from <60W to <85W).
- • QSFP28 Ports
- 2 x 40GE/100GE QSFP28 ports (supports 40 Gbps or 100 Gbps core connectivity).
- • Operating Temperature
- Designed to operate within a standard 0°C to 45°C range.
