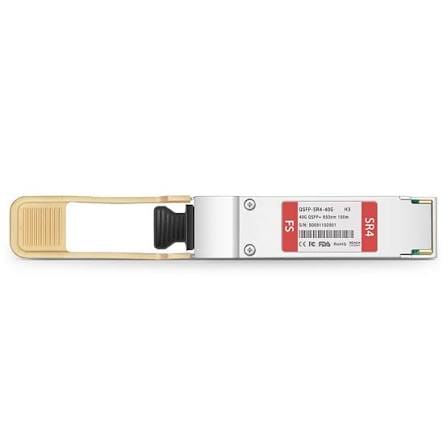

Ruijie 40G-QSFP-SR-MM850
Features
- • High-Speed Aggregation: Leverages 4 parallel lanes operating at approximately 10 Gbps per channel to achieve a combined 40 Gbps throughput.
- • High Thermal Dissipation: Engineered with metallic housing components that manage heat efficiently, critical for maintaining stability in packed data center environments.
- • Seamless Scalability: Ergonomically built with a pull-tab latching mechanism for quick, hot-swappable installation and replacement without dropping active network traffic.
- • Enterprise Grade: Fully compliant with QSFP+ Multi-Source Agreement (MSA) standards, making it highly reliable for core switch-to-switch and switch-to-server interconnects.
Specifications
- • Data Rate
- Up to 40 Gbps
- • Fiber Type
- Multimode Fiber (MMF)
- • Wavelength
- 850 nm (Short Reach)
- • Form Factor
- QSFP+ (Quad Small Form-Factor Pluggable)
- • Connector Type
- MTP/MPO
- • Maximum Distance
- • Ethernet Standard
- 40GBASE-SR
- • Operating Temperature
- 0°C to 70°C
