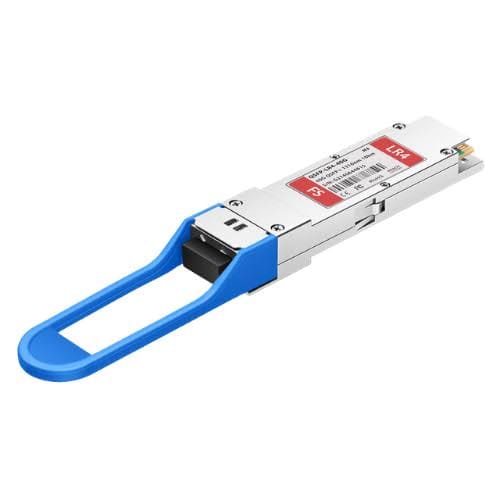

Ruijie 40G-QSFP-iLR4-SM1310
Features
- • Cost-Effective Intermediate Reach: Delivers reliable data transmission up to 2 km, minimizing costs when standard 10 km LR4 optics are unnecessary.
- • 4-Channel CWDM Technology: Combines 4 internal lanes onto a single pair of LC optical fibers using an integrated optical multiplexer/demultiplexer (MUX/DEMUX).
- • Digital Optical Monitoring (DOM): Built-in DOM/DDM diagnostics interface allows network administrators to monitor real-time metrics such as transceiver temperature, voltage, and optical power levels.
- • Hot-Swappable Performance: Engineered for hot-plugging into active Ruijie distribution or core switches, making maintenance seamless without requiring device reboots.
Specifications
- • Data Rate
- Aggregate bandwidth of 40 Gbps (4x 10 Gbps parallel lanes)
- • Fiber Type
- Single-Mode Fiber (SMF)
- • Wavelength
- CWDM Grid (1270 nm, 1290 nm, 1310 nm, 1330 nm)
- • Form Factor
- QSFP+ (Quad Small Form-Factor Pluggable)
- • Connector Type
- Duplex LC
- • Maximum Distance
- Up to 2 kilometers (2 km)
- • Operating Temperature
- 0°C to 70°C (Commercial Grade)
- • Ethernet Standard Compliance
- 40GBASE-iLR4 / 40GBASE-IR4
