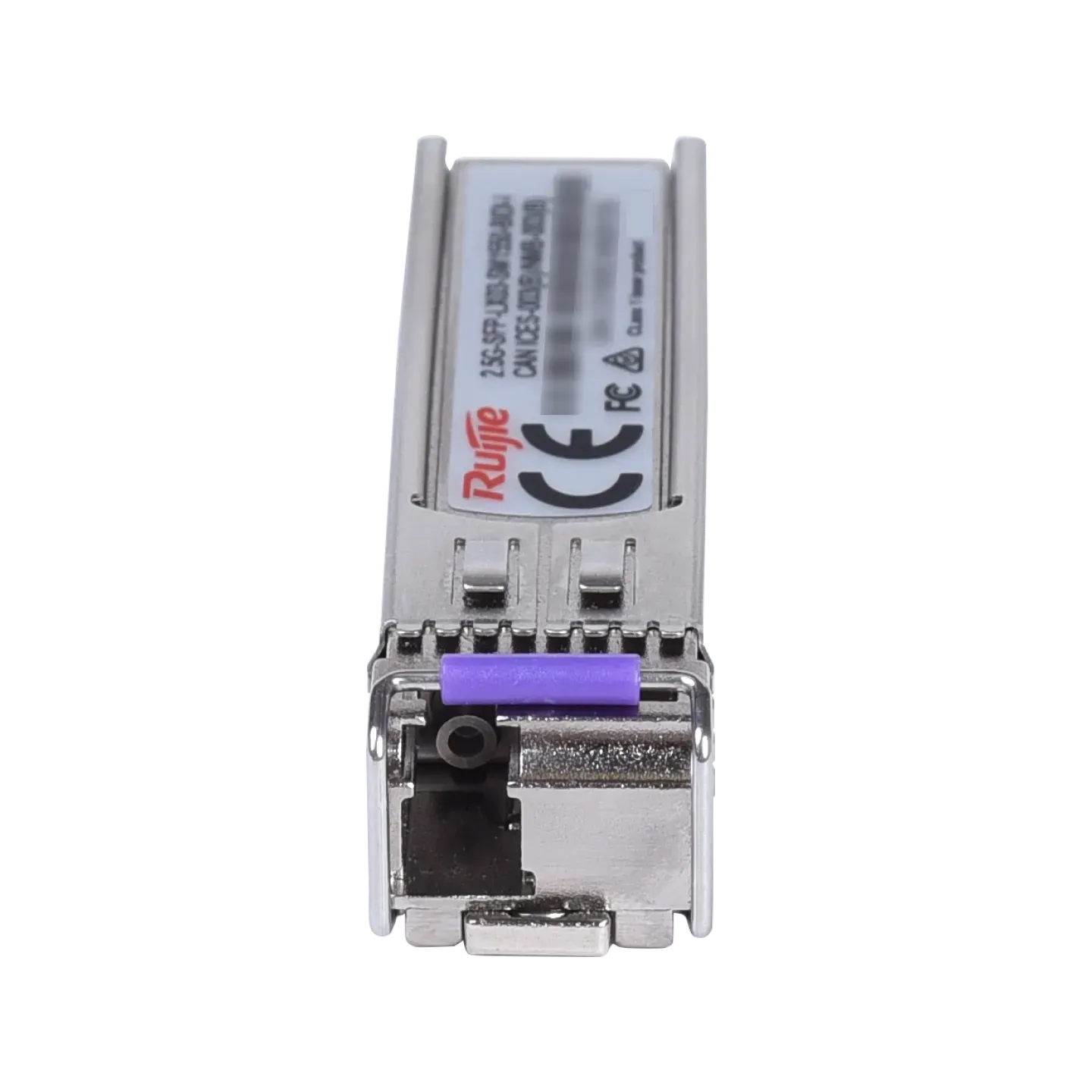

Ruijie 2.5G-SFP-LX03-SM1550-BIDI-I
2.5G-SFP-LX03-SM1550-BIDI-I 2.5G BiDi SFP 1550nm-TX/1310nm-RX 3-km DOM Simplex LC SMF Transceiver Module
Features
- Key Features
- • Inverted Bidirectional Frequency: Operates on a 1550 nm transmission carrier and a 1310 nm capture window. This allows collision-free, concurrent upstream and downstream bandwidth traveling along the exact same fiber core.
- • Industrial Environment Tolerance ("-I"): Ruggedized internal optical engine can handle wide-ranging temperature variations (-40°C to 85°C), tailored for unconditioned junction boxes, factory floors, or wayside transport applications.
- • Digital Diagnostics Monitoring (DDM/DOM): Delivers precise telemetry feedback regarding real-time transmitter output power, receiver input power, device temperature, internal voltage, and laser bias.
- • Standards Conformance: Certified compliant with SFF-8431, SFF-8472, Class 1 Laser Safety, and RoHS environmental baselines.
Specifications
- • Form Factor
- SFP
- • Max Data Rate
- Up to 3.125 Gbps
- • Maximum Reach
- Up to 3 kilometers (3 km) over Single-Mode Fiber (SMF)
- • Connector Type
- BIDI LC Simplex
- • Power Consumption
- Low power layout (≤ 1 Watt)
- • Wavelength Matrix
- TX (Transmit) 1550 nm / RX (Receive) 1310 nm
- • Laser / Receiver Type
- DFB Laser / PIN Receiver
- • Operating Temperature
- Industrial grade (-40°C to 85°C)
- • Standard Compatibility
- Aligned to IEEE 2.5GBASE-LX specifications
