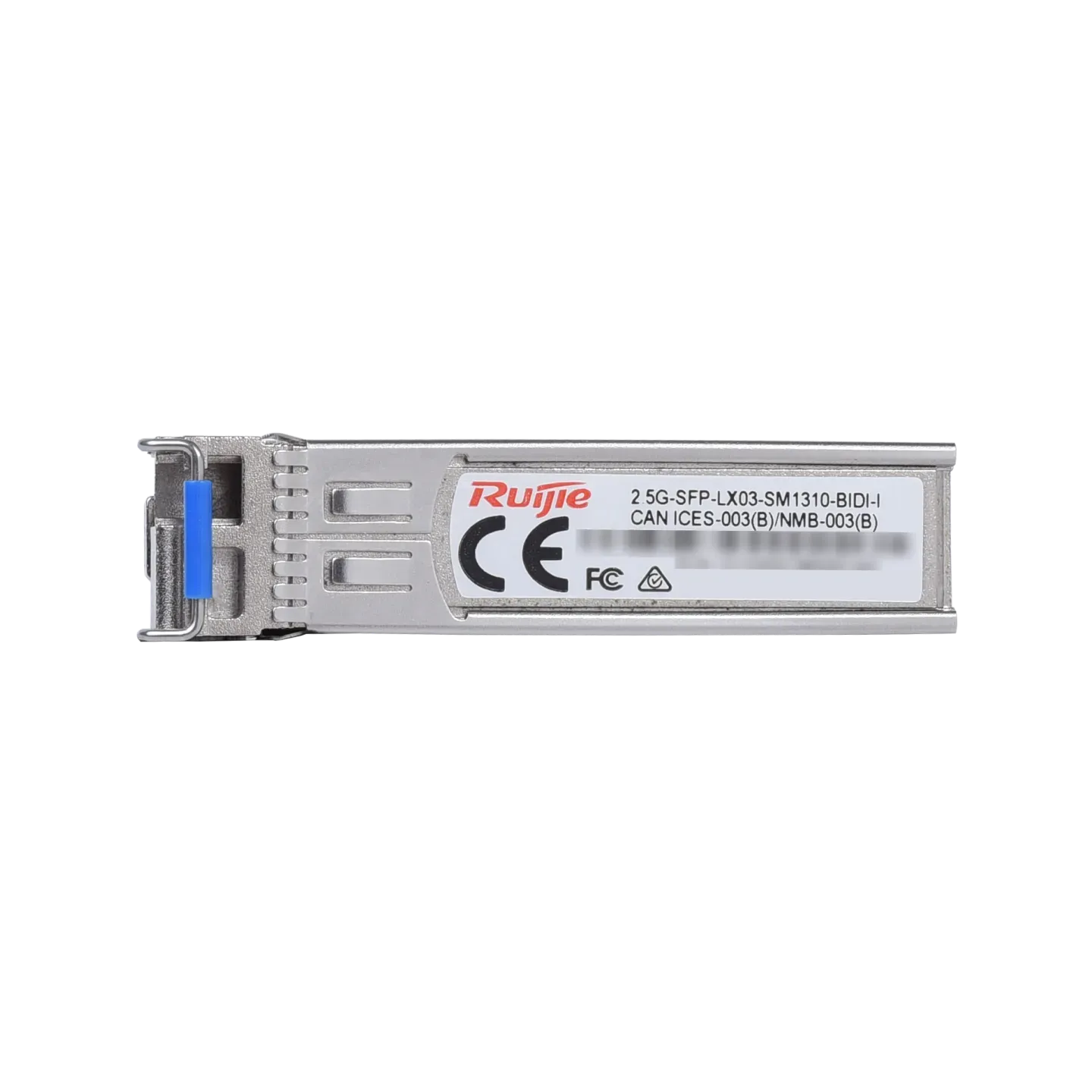

Ruijie 2.5G-SFP-LX03-SM1310-BIDI-I
2.5G-SFP-LX03-SM1310-BIDI-I 2.5G BiDi SFP 1310nm-TX/1550nm-RX 3-km DOM Simplex LC SMF Transceiver Module
Features
- Key Features
- • BiDi Single-Fiber Optimization: Utilizes Wavelength Division Multiplexing (WDM) to transmit and receive concurrently on a single optical strand. This eliminates the need for standard duplex fiber pairs.
- • Industrial-Grade Ruggedness ("-I"): Designed with a robust housing and component layout to handle extreme temperature fluctuations ranging from -40°C up to 85°C, rendering it ideal for unconditioned outdoor cabinets or harsh factory settings.
- • Digital Diagnostics Monitoring (DDM/DOM): Includes built-in real-time monitoring capabilities to track parameters like operating temperature, voltage, laser bias, and optical transmission/reception power levels.
- • Multi-Standard Compliance: Conforms fully to SFF-8431, SFF-8472, and RoHS green standards.
- Deployment Note
- To establish a functional bidirectional fiber link, this module must be paired with its complementary matching module on the opposite end of the cable line:
- • Local End: 2.5G-SFP-LX03-SM1310-BIDI-I (TX 1310nm / RX 1550nm)
- • Remote End: 2.5G-SFP-LX03-SM1550-BIDI-I (TX 1550nm / RX 1310nm)
Specifications
- • Form Factor
- SFP
- • Max Data Rate
- Up to 3.125 Gbps
- • Maximum Reach
- Up to 3 kilometers (3 km) over Single-Mode Fiber (SMF)
- • Connector Type
- BIDI LC Simplex
- • Power Consumption
- Low power layout (≤ 1 Watt)
- • Wavelength Matrix
- TX (Transmit) 1310 nm / RX (Receive) 1550 nm
- • Laser / Receiver Type
- FP Laser / PIN Receiver
- • Operating Temperature
- Industrial grade (-40°C to 85°C)
- • Standard Compatibility
- Aligned to IEEE 2.5GBASE-LX specifications
