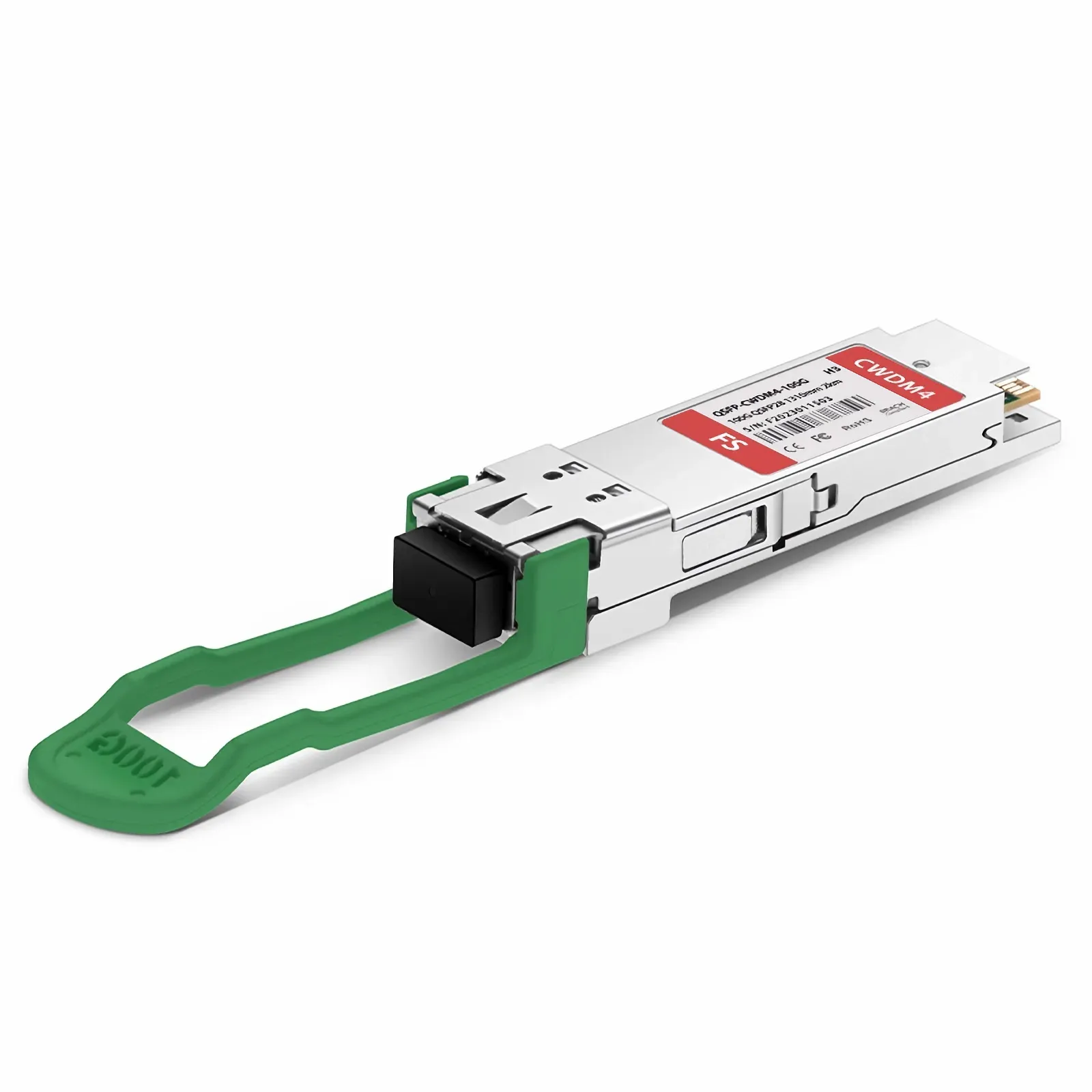

Ruijie 100G-QSFP-iLR4-SM1310
Features
- Key Features
- • Intermediate Range Performance: Explicitly optimized for the 2 km sweet spot, conforming to 100GE CWDM4 MSA and IEEE 802.3bm standards to lower deployment costs over long-reach architectures.
- • Digital Diagnostic Monitoring (DDM): Supports real-time monitoring of voltage, temperature, laser bias current, and optical power parameters.
- • Hot-Swappable Layout: Simplifies network engineering by allowing modules to be safely plugged into open switch slots without power cycling the host device.
- • Eco-Compliance: Fully complies with international environmental and safety baselines, including RoHS, REACH, and FDA guidelines.
Specifications
- • Max Reach
- Up to 2 km (6,561 feet) over Single-Mode Fiber (SMF)
- • Wavelength
- 1310 nm (CWDM grid)
- • Form Factor
- QSFP28
- • Receiver Type
- PIN Photo-detector
- • Operating Speed
- 103.125 Gbps (4 lanes × 25.78 Gbps)
- • Transmitter Type
- Distributed Feedback (DFB) Laser
- • Operating Voltage
- 3.3V
- • Optical Connector
- Duplex LC
- • Power Consumption
- ≤ 3.5 Watts
