Networking

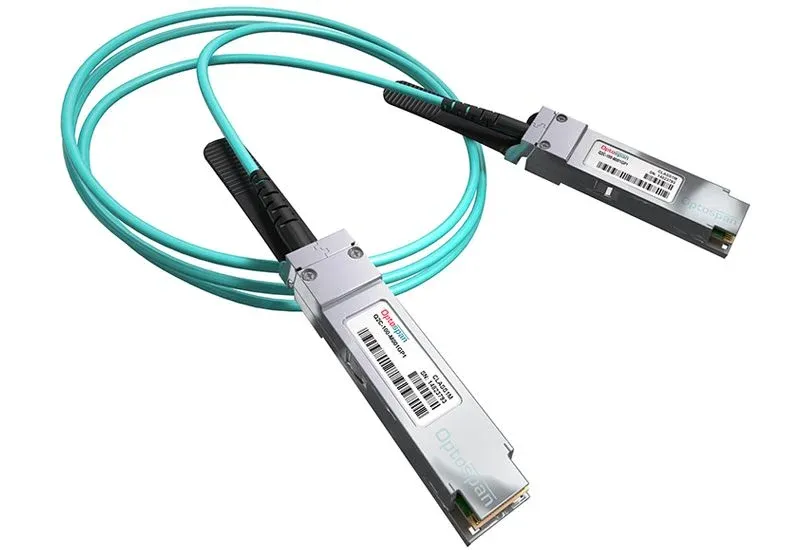

Ruijie 100G-AOC-10M
Features
- Primary Applications
- • High-performance clustering and Virtual Switch Unit (VSU) configuration stacking across core switch chassis.
- • Short-distance high-bandwidth leaf-to-spine linking within computing fabrics.
Specifications
- • Data Rate
- 100 Gbps aggregate line rate (consisting of 4 independent, full-duplex 25 Gbps channels).
- • Form Factor
- QSFP28 to QSFP28
- • Cable Length
- 10 meters (32.81 ft).
- • Optical Medium
- Built-in multi-mode fiber ribbon operating at a nominal wavelength of 850nm.
- • Power Dissipation
- Low power design consuming < 3.5W per cable end.
- • Compliance Standards
- Form-factor engineered in strict accordance with the QSFP28 Multi-Source Agreement (MSA) and certified under environment-friendly RoHS standards.
- • Operating Temperature
- 0°C to 70°C (Standard Commercial Class).
- • EMI & Signal Integrity
- Integrating the electrical-to-optical conversion elements inside the sealed factory connector housing completely isolates high-speed signals from external electromagnetic interference (EMI) and cross-talk.
- • Hot-Swappable Input/Output
- Fully supports hot-swapping, permitting network operators to attach or disconnect the cable interface from active data center switches without disrupting device status or forcing reboots.
- • Optimized Server Rack Airflow
- Being significantly thinner and lighter than traditional direct-attach copper (DAC) cables, this AOC greatly reduces physical clutter. This allows maximum passive convection and optimized airflow inside dense, high-capacity switch frames.
