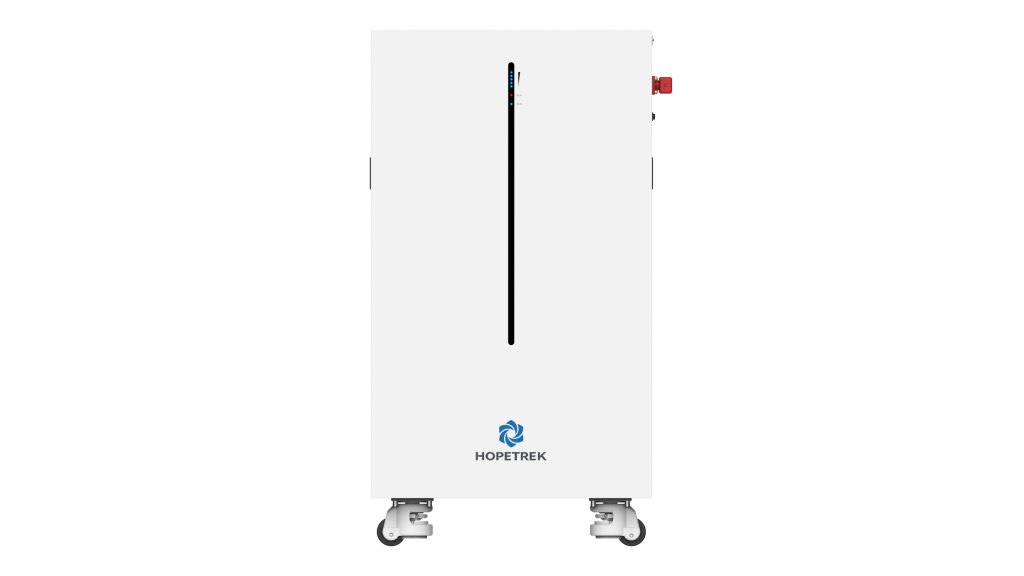

HOPETREK ESS-LB16-W01

Specifications

Supports 160A rated charging and discharging with a maximum discharge current of 200A.

The IP20-rated system is designed for dry indoor locations away from water and moisture.

Delivers at least 8,000 cycles under the specified test conditions at 90% depth of discharge.

Supports up to 16 battery packs connected in parallel for increased energy capacity and power.

Provides 16.08kWh nominal energy and approximately 14.4kWh usable energy at 90% depth of discharge.

Supports discharge operation from -30°C to 55°C and installation at altitudes up to 4,000 metres.

CAN and RS485 communication support coordinated operation with approved compatible inverter systems.

Lithium iron phosphate battery chemistry delivers stable performance and enhanced operational safety.

SOC, running and alarm indicators provide clear information about battery level and operating status.

Integrated wheels assist with positioning while adjustable support feet provide stability after installation.

The intelligent BMS manages charge, discharge and cell balancing while monitoring important system conditions.
